9000 BTU
230 Volts
HEAT PUMP
$730.00
(818) 785-4151
Hours of Operation:
Mon–Fri 7:30 AM – 5:00 PM
Saturday/Sunday
CLOSED
ONE OF THE LARGEST WHOLESALE - DISTRIBUTOR IN THE UNITED STATES OF WALL & WINDOW AIR CONDITIONERS
WHOLESALE - DISTRIBUTOR
(818) 785-4151 15041 Calvert St. Van Nuys, CA 91411 "To better serve you, call or come in." "Our Quantity Buying Gives You The Ability To PurchaseEquipment At The Lowest Prices Available" Sign Up HERE for Exclusive Deals and Offers!
1 & 5 YR WARRANTY • HEATING & COOLING

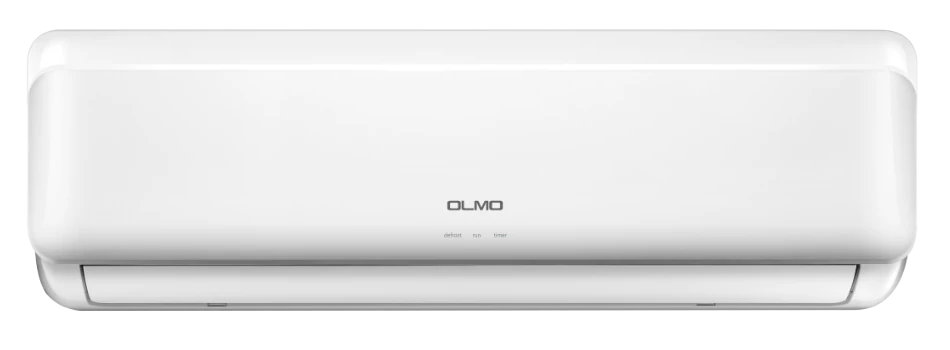

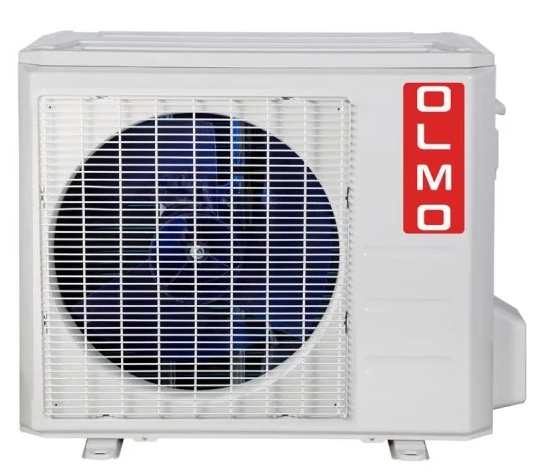

OS-09HP230V2NG
9,000 BTU
230 Volts
HEAT PUMP
$730.00
CORD INCLUDED
"I have the perfect measurements 42" × 16"!"
32HP12CD35
12,000 BTU
230 Volts
HEAT PUMP
$997.00
| Model | 32HP12CD35 | |||
| Power supply | V-Ph-Hz | 208_230V_1Ph_60HZ | ||
| Capacity | Btu/h | 12000/11800 | ||
| Cooling | Input | W | 1040/1020 | |
| (Standard conditions) | Current | A | 5.3/5.8 | |
| EER | Btu/h/W | 10.5 | ||
| Capacity | Btu/h | 10900/8900 | ||
| Heating(PTC) | Input(Heater) | W | 3500/2897 | |
| Current | A | 15.3/13.7 | ||
| Capacity | Btu/h | 10800/10500 | ||
| Heating(Heat pump) | Input | W | 890/850 | |
| (Standard conditions) | Current | A | 5.0/5.3 | |
| COP | W/W | 3.2 | ||
| Starting current | A | 45.9 | ||
| Model | KSM100N11VEZ | |||
| Type | ROTARY | |||
| Brand | GMCC | |||
| Capacity | W | 3590/3620 | ||
| Input | W | 850/875±3% | ||
| Compressor | Rated current | A | 4.18/3.85±3% | |
| Locked rotor Amp(LRA) | A | 28.5±10% | ||
| Thermal protector | UP-A2H/HPA-325H | |||
| Thermal protector position | INTERNAL | |||
| Capacitor | uF | 35 | ||
| Refrigerant oil/oil charge | ml | VG68 300±15 | ||
| Model | ZKFP-25-8-157L | |||
| Indoor side fan motor(DC) | Speed(hi/mi/lo) | r/min | cooling:1110/930 heating:1110/1020 | |
| Insulation class | B | |||
| Waterproofing class | IP20 | |||
| Model | YKT-58-4-3L | |||
| Input | W | 87 | ||
| Outdoor side fan motor | Capacitor | uF | 3 | |
| Speed(hi/mi/lo) | r/min | 1580 | ||
| Capacitor class | S3 | |||
| Insulation class | B | |||
| a.Number of rows | 2 | |||
| b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 | ||
| c.Fin spacing | mm | 1.2 | ||
| Evaporator | d.Fin type (code) | Hydrophilic aluminum | ||
| e.Tube outside dia.and type | mm | Φ7,Inner groove tube | ||
| f.Coil length x height x width | mm | 700x252x26.74 | ||
| g.Number of circuits | 2 | |||
| Indoor side air flow(Hi/Mi/Lo) | m3/h | 745/0/585 | ||
| ft3/min | 438.24///344.12 | |||
| Indoor side noise level (Hi/Mi/Lo) | dB(A) | 52/0/51.5 | ||
| a.Number of rows | 3 | |||
| b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 | ||
| c.Fin spacing | mm | 1.2 | ||
| Condenser | d.Fin type (code) | Hydrophilic aluminum | ||
| e.Tube outside dia.and type | mm | Φ7,Inner groove tube | ||
| f.Coil length x height x width | mm | 635x357x40.11 | ||
| g.Number of circuits | 3 | |||
| Outdoor side noise level(Hi) | dB(A) | 67 | ||
| Refrigerant type | R32 | |||
| Refrigerant type | kg | 0.76 | ||
| oz(1kg=35.274oz) | 26.80824 | |||
| Design pressure(145psi=1MPa )(L/H) | psi | 300/580 | ||
| Connection wiring | 12#x3 | |||
| Plug type | LCDI(6-20P) | |||
| Control type | Electronic Control | |||
| indoor(cooling/heating) | °C | 17-32/0-27 | ||
| °F | 63-90/32-80 | |||
| outdoor(cooling/heating) | °C | 18-43/-5-24 | ||
| °F | 64-109/23-75 | |||
| Dimension(W*D*H) | mm | 1067x532x406 | ||
| in | 42.01x20.94x15.98 | |||
| Packing | (W*D*H) | mm | 1130x625x490 | |
| in | 44.49x24.61x19.29 | |||
| Net/Gross weight | kg | 50/54 | ||
| lb | 110.23/119.05 | |||
| Loading quantity 20’ /40’ /40'HQ | Pieces | 72/152/190 | ||

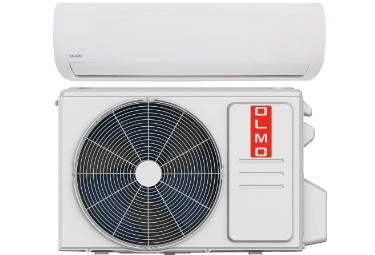

Complete System! Indoor and Outdoor Units!
Up to 21.5 SEER

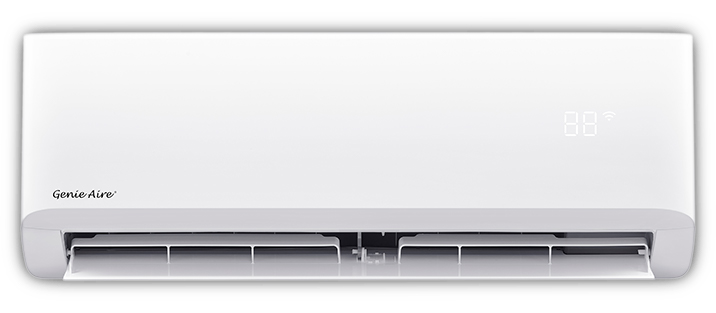

GA-09HP115V9,000 BTU115 VoltsHEAT PUMP$998.00 GA-12HP115V12,000 BTU115 VoltsHEAT PUMP$930.00 GA-12HP230V12,000 BTU230 VoltsHEAT PUMP$930.00 GA-18HP230V18,000 BTU230 VoltsHEAT PUMP$1308.00 GA-24HP230V24,000 BTU230 VoltsHEAT PUMP$1782.00 GA-36HP230V36,000 BTU230 VoltsHEAT PUMP$2268.00Indoor unit model |
GA-09HP115V/I |
GA-12HP115V/I |
GA-12HP230V/I |
GA-18HP230V/I |
GA-24HP230V/I |
GA-36HP230V/I |
||
Outdoor unit model |
GA-09HP115V/O |
GA-12HP115V/O |
GA-12HP230V/O |
GA-18HP230V/O |
GA-24HP230V/O |
GA-36HP230V/O |
||
Power supply |
V-Ph-Hz |
115V,1Ph,60Hz |
115V,1Ph,60Hz |
208/230V,1Ph,60Hz |
208/230V,1Ph,60Hz |
208/230V,1Ph,60Hz |
208/230V,1Ph,60Hz |
|
Cooling (Standard conditions) |
Capacity (range) |
Btu/hr |
9000(2650~10300) |
12000(3800~12100) |
12000(3800~13350) |
18000(3900~20000) |
24000(6200~24600) |
36000(8300~37500) |
Input |
W |
720(245~950) |
1165(239~1890) |
1111(239~1528) |
1638(180~1480) |
2520(292~2900) |
3790(340~3048) |
|
Current |
A |
6.26(2.13~9.16) |
10.13(2.07~16.5) |
4.9(1.05~6.78) |
7.5(0.78~6.43) |
11.2(1.95~12.7) |
16.8(1.45~13.3) |
|
EER |
Btu/hr/W |
12.5 |
10.3 |
10.8 |
11 |
9.5 |
9.5 |
|
SEER |
Btu/hr/W |
21.5 |
20.0 |
20.5 |
19.5 |
18.5 |
18 |
|
Heating (Standard conditions) |
Capacity (range) |
Btu/hr |
10000(2700~10500) |
12000(2730~12500) |
12000(2730~13900) |
18800(6300~19400) |
24000(6800~26800) |
36000(10900~37360) |
Input |
W |
900(220~1200) |
1154(376~1390) |
1039(376~1390) |
1806(375~1770) |
2350(437~2900) |
3790(610~3720) |
|
Current |
A |
7.82(1.95~10.45) |
10.05(3.26~16) |
4.6(1.67~6.17) |
/(1.63~7.69) |
10.25(2.88~12.7) |
16.8(2.66~16.2) |
|
COP |
W/W |
3.26 |
3.05 |
3.38 |
3.05 |
2.99 |
2.78 |
|
HSPF |
Btu/hr/W |
10.3 |
10.8 |
10.7 |
10 |
10.2 |
12.0 |
|
Cooling at 5 F (-15℃) |
Rated capacity |
Btu/hr |
9000 |
12000 |
12000 |
20000 |
29000 |
42400 |
Cooling(B2) |
Rated capacity |
Btu/hr |
9900 |
13000 |
13000 |
20000 |
25600 |
37400 |
EER |
Btu/hr/W |
15.75 |
12.72 |
13.48 |
13.13 |
11.63 |
11.74 |
|
Heating at 17F(-8.33℃) |
Rated capacity |
Btu/hr |
9000 |
7600 |
8900 |
12400 |
17800 |
24700 |
COP |
W/W |
2.08 |
1.93 |
1.99 |
2.06 |
2.01 |
2.03 |
|
Heating at -4F(-20℃) |
Rated capacity |
Btu/hr |
5400 |
/ |
/ |
/ |
/ |
18900 |
COP |
W/W |
1.67 |
/ |
/ |
/ |
/ |
1.68 |
|
Heating(H32)17F(-8.33℃) |
Rated capacity |
Btu/hr |
6300 |
7800 |
7000 |
11400 |
14500 |
20000 |
COP |
W/W |
2.4 |
2.3 |
2.5 |
2.57 |
2.38 |
2.3 |
|
Heating(H42) 5F(-15℃) |
Rated capacity |
Btu/hr |
7000 |
6300 |
8000 |
11700 |
14800 |
22000 |
COP |
W/W |
2.16 |
1.78 |
1.79 |
2.06 |
1.83 |
2.01 |
|
capability ratio |
% |
70.00 |
52.50 |
66.67 |
62.23 |
67.50 |
64.44 |
|
Moisture removal |
L/h |
0.891 |
1.46 |
1.21 |
2.49 |
2.7 |
4.48 |
|
MINIMUM CIRCUIT AMPACITY(Indoor) |
A |
3 |
3 |
3 |
3 |
3.0 |
3.0 |
|
MAX.FUSE(Indoor) |
A |
15 |
15 |
15 |
15 |
15 |
15 |
|
MINIMUM CIRCUIT AMPACITY(Outdoor) |
A |
20 |
18.5 |
15 |
15 |
19 |
28 |
|
MAX.FUSE(Outdoor) |
A |
30 |
25 |
15 |
20 |
30 |
35 |
|
Compressor |
Model |
KSK103D33UEZ3 |
KSN98D64UFZ3 |
KSN98D64UFZ3 |
KSN140D21UFZ |
KTM240D43UKT |
KTF250D22UMT |
|
Type |
ROTARY |
ROTARY |
ROTARY |
ROTARY |
Twin-ROTARY |
ROTARY |
||
Brand |
GMCC |
GMCC |
GMCC |
GMCC |
GMCC |
GMCC |
||
Capacity |
W |
2035/3255 |
1930/3100 ±3% |
1930/3100 ±3% |
4385 |
7600 |
8095 |
|
Input |
W |
325/826 |
292/765 ±3% |
292/765 ±3% |
1140 |
2045 |
2200 |
|
Rated current(RLA) |
A |
14 |
12.98 |
7.5 |
10 |
14.25 |
18 |
|
Thermal protector position |
NA |
NA |
NA |
/ |
NA |
NA |
||
Capacitor |
uF |
/ |
/ |
/ |
/ |
/ |
/ |
|
Refrigerant oil/oil charge |
ml |
ESTER OIL VG74 310 |
ESTER OIL VG74 300±10 |
ESTER OIL VG74 300±10 |
VG74 440 |
ESTER OIL VG74 620 |
VG74/670 |
|
Indoor fan motor |
Model |
ZKFP-20-8-113 |
ZKFP-20-8-113 |
ZKFP-13-8-4 |
ZKFP-30-8-3-10 |
ZKFP-58-8-1-5 |
ZKFP-58-8-1-5 |
|
Input |
W |
35 |
35 |
/ |
36 |
58 |
58 |
|
RLA |
A |
0.15 |
0.41 |
0.63 |
0.4 |
0.45 |
0.5 |
|
Speed(Hi/Mi/Lo) |
r/min |
1050/810/690 |
850/750/450 |
1250/1070/800 |
1200/1000/700 |
1200/1080/600 |
1200/960/600 |
|
Indoor air flow (Turbo/Hi/Mi/Lo) |
m3/h |
530/406/289/233 |
580/510/410/300 |
590/495/335/265 |
0/780/560/460 |
1237/929/684/562 |
1350/1110/760/560 |
|
CFM |
311.76/238.82/170.00/137.06 |
341.18/300.00/241.18/176.47 |
347.06/291.18/197.06/155.88 |
//458.82/329.41/270.59 |
727.65/546.47/402.35/330.59 |
794.12/652.94/447.06/329.41 |
||
Indoor noise level (Hi/Mi/Lo) |
dB(A) |
37.5/28/20 |
41/35/26.5 |
41/35/24 |
45/38/30.0 |
45/39.5/36 |
54/45/40 |
|
Indoor unit |
Dimension(W*D*H) |
mm |
729x200x292 |
802x200x295 |
802x200x295 |
971x228x321 |
1082x234x337 |
1259x283x362 |
Dimension(W*D*H) |
inch |
28.70x7.87x11.50 |
31.57x7.87x11.61 |
31.57x7.87x11.61 |
38.23x8.98x12.64 |
42.60x9.21x13.27 |
49.57x11.14x14.25 |
|
Packing (W*D*H) |
mm |
790x270x375 |
875x285x380 |
875x285x380 |
1045x305x405 |
1155x415x315 |
1340x450x385 |
|
Packing (W*D*H) |
inch |
31.10x10.63x14.76 |
34.45x11.22x14.96 |
34.45x11.22x14.96 |
41.14x12.01x15.94 |
45.47x16.34x12.40 |
52.76x17.72x15.16 |
|
Net/Gross weight |
kg |
8.0/10.3 |
8.4/10.9 |
8.5/10.9 |
11.1/14.4 |
13.6/17.3 |
19.4/25.2 |
|
Net/Gross weight |
lb |
17.64/22.71 |
18.52/24.03 |
18.74/24.03 |
24.47/31.75 |
29.98/38.14 |
42.77/55.56 |
|
Outdoor fan motor |
Model |
ZKFN-34-10-1-3 |
ZKFN-34-10-1-3 |
ZKFN-34-10-1-3 |
ZKFN-34-10-1-3 |
ZKFN-80-8-3 |
ZKFN-120-8-2 |
|
Input |
W |
/ |
/ |
/ |
/ |
/ |
150 |
|
RLA |
A |
0.32 |
0.73 |
0.65 |
0.7 |
0.76 |
0.5 |
|
LRA |
A |
/ |
/ |
/ |
/ |
/ |
/ |
|
Winding Resistance |
Ω |
/ |
/ |
/ |
/ |
/ |
/ |
|
Capacitor |
uF |
/ |
/ |
/ |
0 |
/ |
/ |
|
Speed |
r/min |
800/600 |
780/700/600 |
780/700/600 |
950/800/650/450 |
810/720 |
1150/1050/900/850 |
|
Outdoor air flow |
m3/h |
2200 |
2100 |
2100 |
2100 |
3000 |
3800 |
|
Outdoor air flow |
CFM |
1294.12 |
1235.29 |
1235.29 |
1235.29 |
1764.71 |
2235.29 |
|
Outdoor noise level |
dB(A) |
55 |
53.5 |
53.5 |
57 |
60 |
65 |
|
Throttle type |
/ |
Capillary |
Capillary |
Capillary |
Capillary |
Throttle valve |
EXV+Throttle valve |
|
Outdoor unit |
Dimension(W*D*H) |
mm |
765x303x555 |
765x303x555 |
765x303x555 |
805x330x554 |
890x342x673 |
946x410x810 |
Dimension(W*D*H) |
inch |
30.12x11.93x21.85 |
30.12x11.93x21.85 |
30.12x11.93x21.85 |
31.69x12.99x21.81 |
35.04x13.46x26.50 |
37.24x16.14x31.89 |
|
Packing (W*D*H) |
mm |
887x337x610 |
887x337x610 |
887x337x610 |
915x370x615 |
995x398x740 |
1090x500x885 |
|
Packing (W*D*H) |
inch |
34.92x13.27x24.02 |
34.92x13.27x24.02 |
34.92x13.27x24.02 |
36.02x14.57x24.21 |
39.17x15.67x29.13 |
42.91x19.69x34.84 |
|
Net/Gross weight |
kg |
26.2/28.8 |
28.2/30.7 |
26.9/29.4 |
33.5/36.2 |
44.4/47.4 |
68.1/72.1 |
|
Net/Gross weight |
lb |
57.76/63.49 |
62.17/67.68 |
59.30/64.82 |
73.85/79.81 |
97.88/104.50 |
150.13/158.95 |
|
Refrigerant type |
R410A |
R410A |
R410A |
R410A |
R410A |
R410A |
||
Refrigerant charge |
kg |
0.72 |
0.81 |
0.81 |
1.35 |
1.78 |
3.40 |
|
oz |
25.4 |
29 |
29 |
48 |
63 |
120 |
||
Additional charge per metre |
g/m |
15 |
15 |
15 |
15 |
30 |
30 |
|
Additional charge for each ft |
oz/ft |
0.16 |
0.16 |
0.16 |
0.16 |
0.32 |
0.32 |
|
Design pressure |
PSIG |
550/340 |
550/340 |
550/340 |
550/340 |
550/340 |
550/340 |
|
Refrigerant piping |
Liquid side/ Gas side |
mm(inch) |
6.35mm(1/4in)/9.52mm(3/8in) |
6.35mm(1/4in)/12.7mm(1/2in) |
6.35mm(1/4in)/12.7mm(1/2in) |
6.35mm(1/4in)/12.7mm(1/2in) |
9.52mm(3/8in)/15.9mm(5/8in) |
9.52mm(3/8in)/15.9mm(5/8in) |
Max. refrigerant pipe length |
m |
25 |
25 |
25 |
30 |
50 |
65 |
|
Max. refrigerant pipe length |
ft |
82.02 |
82.02 |
82.02 |
98.42 |
164.04 |
213.25 |
|
Max. difference in level |
m |
10 |
10 |
10 |
20 |
25 |
30 |
|
Max. difference in level |
ft |
32.81 |
32.81 |
32.81 |
65.62 |
82.02 |
98.42 |
|
Connection wiring |
16#x4// |
16#x4// |
16#x4// |
16#x4// |
16#x4// |
16#x4// |
||
Thermostat type |
Remote Control |
Remote Control |
Remote Control |
Remote Control |
Remote Control |
Remote Control |
||
Room temperature |
Indoor(cooling) |
℃ |
16～32 |
16～32 |
16～32 |
16～32 |
16～32 |
16～32 |
℉ |
60～90 |
60～90 |
60～90 |
60～90 |
60～90 |
60～90 |
||
Indoor(heating) |
℃ |
0～30 |
0～30 |
0～30 |
0～30 |
0～30 |
0～30 |
|
℉ |
32～86 |
32～86 |
32～86 |
32～86 |
32～86 |
32～86 |
||
Outdoor(cooling) |
℃ |
-15～50 |
-15～50 |
-15～50 |
-15～50 |
-15～50 |
-15～50 |
|
℉ |
5～122 |
5～122 |
5～122 |
5～122 |
5～122 |
5～122 |
||
Outdoor(heating) |
℃ |
-15～24 |
-15～24 |
-15～24 |
-15～24 |
-15～24 |
-15～24 |
|
℉ |
5～75 |
5～75 |
5～75 |
5～75 |
5～75 |
5～75 |
||
Qty’per 20’ /40’ /40'HQ |
111/228/260 |
98/208/250 |
98/208/250 |
86/174/204 |
64/134/156 |
36/76/88 |
||
15 YEAR WARRANTY ON COMPRESSOR
Longest Warranty in the United States on a TTW!

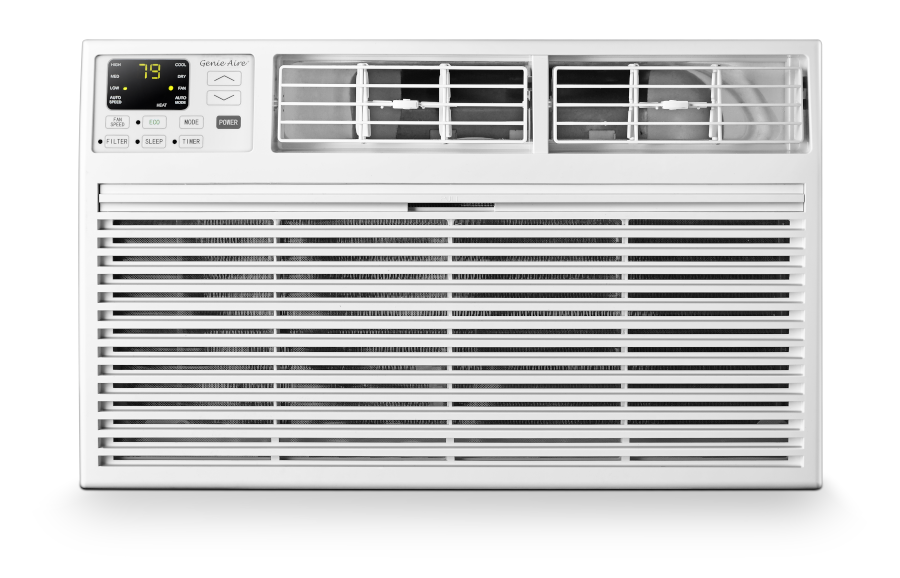

GA23-08CRN1-1158,000 BTU115 VoltsCOOL$776.00
GA23-12CRN1-23012,000 BTU230 VoltsCOOL$787.00
GA23-08ERN1-DC168,000 BTU115 VoltsHEAT / COOL$797.00
GA23-12ERN1-MC1512,000 BTU230 VoltsHEAT / COOL$832.00
GA23-14ERN1-MC1314,000 BTU230 VoltsHEAT / COOL$997.00
| Customer model | GA23-08ERN1-DCI6 |
GA23-12ERN1-MCI5 |
GA23-14ERN1-MCI3 |
||
| Power supply | V-Ph-Hz | 115V_1Ph,FREQUENCY_60HZ | 208And230V_1Ph,FREQUENCY_60HZ | 208And230V_1Ph,FREQUENCY_60HZ | |
| Cooling (Standard conditions) | Capacity | Btu/h | 8000 | 12000/11700 | 14000/13600 |
| EER | W/W | 3.13 | Infinity | 0.30 | |
| CEER | Btu/h/W | 9.6 | 9.5 | 9.5 | |
| Input | W | 750 | 1180/1160 | 1430/1400 | |
| Current | A | 9.4 | 6.5/7.0 | 7.9/8.5 | |
| Standby power | W | 1.34 | 1.458 | 1.455 | |
| Heating(PTC) | Capacity | Btu/h | 4200 | 10600/8600 | 10600/8600 |
| Input(Heater) | W | 1220 | 3450/2821 | 3450/2821 | |
| Current | A | 11 | 15/13.5 | 15.0/14.0 | |
| Moisture Removal | L/h | 0.9 | 1.2 | 1.4 | |
| Rated Power Input | W | 1350 | 3450 | 3450 | |
| Rated Current | A | 11 | 15 | 15 | |
| Starting current | A | 33 | 45 | / | |
| Compressor | Model | KSN66E11VBZC1 | KSM100N11VEZ | KSM120N1UEZ | |
| Type | ROTARY | ROTARY | ROTARY | ||
| Brand | GMCC | GMCC | GMCC | ||
| Capacity | W | 2395 | 3590/3620 | 3640/3680 | |
| Input | W | 577 | 850/875±3% | 1240/1260±3% | |
| current | A | 5.10 | 4.18/3.85±3% | 6.00/5.55±3% | |
| Locked rotor Amp(LRA) | A | 36 | 28.5±10% | 34.5±10% | |
| Thermal protector | / | UP-A2H/HPA-325H | HPA-530H | ||
| Thermal protector position | INTERNAL | INTERNAL | INTERNAL | ||
| Capacitor | uF | 50 | 35 | 35 | |
| Refrigerant oil/oil charge | ml | VG68 190±10 | VG68 300±15 | VG68 300±15 | |
| Refrigerant type | Type | R32 | R32 | R32 | |
| 0.34kg | 0.49kg | 0.55kg | |||
| oz(1kg=35.274oz) | 11.99 | 17.28 | 19.40 | ||
| Design pressure(145psi=1MPa )(L/H) | psi | 300/520 | 300/520 | 300/520 | |
| Fan motor | Model | ZKFP-120-8-97L | ZKFP-120-8-97L | ZKFP-120-8-97L | |
| Input | W | 130.00 | 130.00 | 130.00 | |
| Current | A | 1.15 | 1.15 | 1.15 | |
| Capacitor | uF | / | / | / | |
| Speed(hi/mi/lo) | r/min | 1370/1210/1040 | 1550/1440/1340 | 1550/1440/1340 | |
| Insulation class | B | B | B | ||
| Waterproofing class | IP24 | IP24 | IP24 | ||
| Evaporator | a.Number of rows | 2 | 3 | 4 | |
| b.Tube pitch(a)x row pitch(b) | mm | 19.5x11.6 | 19.5x11.6 | 19.5x11.6 | |
| c.Fin spacing | mm | 1.2 | 1.3 | 1.3 | |
| d.Fin type (code) | Hydrophilic aluminum | Hydrophilic aluminum | Hydrophilic aluminum | ||
| e.Tube outside dia.and type | mm | Φ7,Inner groove tube | Φ7,Inner groove tube | Φ7,Inner groove tube | |
| f.Coil length x height x width | mm | 506x252x26.74 | 505x252x53.48 | 505x252x53.48 | |
| g.Number of circuits | 2 | 4 | 4 | ||
| Indoor side air flow(Hi/Mi/Lo) | m3/h | 440/386/327 | 465/428/392 | 463/428/396 | |
| 1 m3/h = 0.588 ft3/min | ft3/min | 258.82/227.06/192.35 | 273.53/251.76/230.59 | 272.35/251.76/232.94 | |
| Indoor side noise level (Hi/Mi/Lo) | dB(A) | 58.7/55.4/52 | 61.8/60/58 | 62.3/61.2/59.8 | |
| Condenser | a.Number of rows | 3 | 3 | 3 | |
| b.Tube pitch(a)x row pitch(b) | mm | 19.5x11.6 | 19.5x11.6 | 19.5x11.6 | |
| c.Fin spacing | mm | 1.2 | 1.2 | 1.2 | |
| d.Fin type (code) | Hydrophilic aluminum | Hydrophilic aluminum | Hydrophilic aluminum | ||
| e.Tube outside dia.and type | mm | Φ5,Inner groove tube | Φ5,Inner groove tube | Φ5,Inner groove tube | |
| f.Coil length x height x width | mm | 380x351x34.8 | 380x351x34.8 | 380x351x34.8 | |
| g.Number of circuits | 2 | 2 | 2 | ||
| Outdoor air flow (Hi/Med/Lo) m3/h | m3/h | 722/613/504 | 767/695/623 | 816/747/680 | |
| 1 m3/h = 0.588 ft3/min | ft3/min | 424.71/360.59/296.47 | 451.18/408.82/366.47 | 480.00/439.41/400.00 | |
| Outdoor side noise level(Hi) | dB(A) | 63.5/59.7/55.9 | 65.4/63.2/61.1 | 69.8/67.2/64.8 | |
| Plug type | LCDI(6-15P) | LCDI(6-20P) | LCDI(6-20P) | ||
| Power cord type | 14#x3 | 12#x3 | 12#x3 | ||
| Power Cord Length | mm | 1700 | 1700 | 1700 | |
| Power Cord Length | ft | 5.58 | 5.58 | 5.58 | |
| Control type | Remote Control | Remote Control | Remote Control | ||
| Operation temp | indoor(cooling/heating) | ℃ | 17～32// | 17～32// | 17～32// |
| ℉(=℃*1.8+32) | 62～90// | 62～90// | 62～90// | ||
| outdoor(cooling/heating) | ℃ | 18～43/-5～24 | 18～43/-5～24 | 18～43/-5～24 | |
| ℉(=℃*1.8+32) | 64～109/5～75 | 64～109/5～75 | 64～109/5～75 | ||
| Dimension(W*D*H)(Remark:TTW/OPP/MSII/HD(D*W*H)) | mm | 615x515x369 | 615x515x369 | 615x515x369 | |
| in | 24.21x20.28x14.53 | 24.21x20.28x14.53 | 24.21x20.28x14.53 | ||
| Packing (W*D*H) | mm | 710x675x430 | 710x675x430 | 710x675x430 | |
| in | 27.95x26.57x16.93 | 27.95x26.57x16.93 | 27.95x26.57x16.93 | ||
| Net/Gross weight | kg | 30.3/35 | 34/38.9 | 35.1/39.8 | |
| lb | 66.80/77.16 | 74.96/85.76 | 77.38/87.74 | ||
| Loading quantity 20’ /40’ /40'HQ | Pieces | 120/255/306 | 120/255/306 | 120/255/306 | |
| Window Opening | Width(Min/Max)(Inches) | in | 26.8/36 | 26.8/36 | 26.8/36 |
| Height(Min)(Inches) | in | 15.5 | 15.5 | 15.5 | |

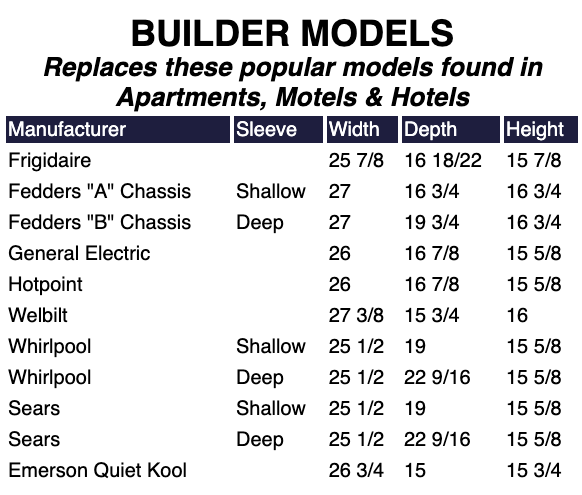

24" Builder Model Solid Sided
230 Volts 12,000 BTU
$696
I might be cheap but I'm high Class!

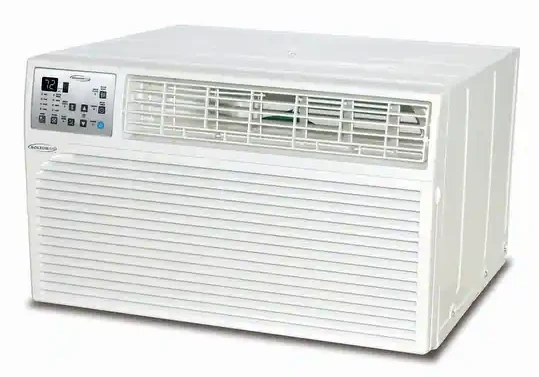

| Model | SG-TTW-10ESE | SG-TTW-12ESEZ | SG-TTW-12ESE | SG-TTW-14 |
|---|---|---|---|---|
| Power Supply (Ph/V/Hz) | 1/115/60Hz | 1/115/60Hz | 1/230-208/60Hz | 1/230-208/60Hz |
| Dehumidifying Capacity (Pints/Day) | 60 | 81.6 | 81.6 | 100.8 |
| Rated Cooling Capacity (BTU/h) | 10000 | 12000 | 12000/11700 | 14000/13600 |
| Cooling Power Input (Watts) | 1060 | 1280 | 1280/1240 | 1650/1600 |
| Rated Current Cooling (Amperage) | 9.5 | 11.7 | 6.0/6.5 | 7.0/7.5 |
| EER | 9.4 | 9.4 | 9.4 | 8.5 |
| Noise Level dB(A) (High/Med/Low) | 58/56/54 | 59/57/55 | 59/57/55 | 59/57/55 |
| CFM (High/Med/Low) | 290/260/230 | 300/266/225 | 300/266/225 | 320/290/260 |
| Power Plug Type | NEMA 5-15P | NEMA 5-15P | NEMA 6-15P | NEMA 6-15P |
| Dimensions (W x H x D) | 24 x 14.50 x 20.625 | 24” x 14.50” x 20.625” | 24” x 14.50” x 20.625” | 24” x 14.50” x 20.625” |
| Package Dimensions (W x H x D) | 28.50” x 16.375” x 27.125” | 28.5” x 16.375” x 27.125” | 28.5” x 16.375” x 27.125” | 28.5” x 16.375” x 27.125” |
| Net/Gross Weight (lbs) | 74/86 | 76.2/88.3 | 76.2/86 | 78.3/90.4 |
| Refrigerant | R-410A | R-410A | R-410A | R-410A |
1 & 5 YR WARRANTY • HEATING & COOLING

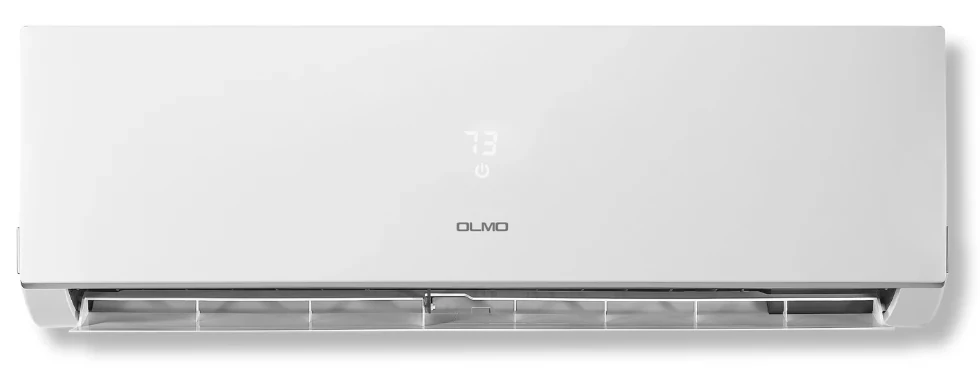

OS-09HP115V2NG9,000 BTU115 VoltsHEAT PUMP$830.00
OS-09HP115V2TG9,000 BTU115 VoltsHEAT PUMP$830.00
OS-09HP220V2TG9,000 BTU220 VoltsHEAT PUMP$830.00
OS-09HP230V2NG9,000 BTU230 VoltsHEAT PUMP$730.00
OS-12HP230V2NG12,000 BTU230 VoltsHEAT PUMP$950.00
OS-12TRP230V12,000 BTU230 VoltsHEAT PUMP$1132.00
OS-18HP220V2TG18,000 BTU230 VoltsHEAT PUMP$1330.00
OS-18HP230V2NG18,000 BTU230 VoltsHEAT PUMP$1330.00
OS-18TRP230V18,000 BTU230 VoltsHEAT PUMP$1358.00
| Model | OS-09HP115V2TG | |
| System Type | Heat Pump | |
| Power Supply | 115V / 60Hz | |
| Rated Current Cooling | Amps | 8.9 |
| Rated Current Heating | Amps | 7.9 |
| System Performance | ||
| Cooling Capacity (Min-Max) | Btu/h | 9,000 |
| Heating Capacity (Min-Max) | Btu/h | 9,000 |
| SEER/EER | 15 / 9.0 | |
| HSPF/COP | 8.2 / 3.2 | |
| Indoor Unit | ||
| Air Flow | CFM | 480/420/320 |
| Sound Pressure Level – T/H/M/L | dB (A) | 39/35/29 |
| Unit Dimension (WxHxD) | inches | 26.8 x 10.1 x 7.0 |
| Package Dimension (WxHxD) | inches | 29.3 x 13.0 x 10.1 |
| Net / Gross Weight | lb | 15 / 18 |
| Outdoor Unit | ||
| Compressor Type | DC Inverter-driven rotary | |
| Sound Pressure Level | dB (A) | 56 |
| Unit Dimension (WxHxD) | inches | 26.0 x 21.3 x 10.4 |
| Package Dimension (WxHxD) | inches | 31.3 x 24.4 x 14.0 |
| Net / Gross Weight | lb | 64 / 71 |
| Refrigerant / Charge | oz. | R410A / 31.8 |
| Line Set Size (Liquid – Suction) | inches | 1/4" – 3/8" |
| Pre-Charge | Feet | 25 |
| Max. Line Run | Feet | 82 |
| Max. Elevation | Feet | 33 |
| MCA | Amps | 15 |
| MOCP | Amps | 25 |
| Wire Size / # Wires | AWG16 / 4 | |
| Model | OS-12HP115V2TG | |
| System Type | Heat Pump | |
| Power Supply | 115V / 60Hz | |
| Rated Current Cooling | Amps | 11.9 |
| Rated Current Heating | Amps | 11.7 |
| System Performance | ||
| Cooling Capacity (Min-Max) | Btu/h | 12,000 |
| Heating Capacity (Min-Max) | Btu/h | 12,000 |
| SEER/EER | 15 / 8.7 | |
| HSPF/COP | 8.2 / 3.2 | |
| Indoor Unit | ||
| Air Flow | CFM | 580/500/400 |
| Sound Pressure Level – T/H/M/L | dB (A) | 39/35/29 |
| Unit Dimension (WxHxD) | inches | 30.3 x 10.1 x 7.4 |
| Package Dimension (WxHxD) | inches | 32.9 x 13.0 x 10.4 |
| Net / Gross Weight | lb | 17 / 21 |
| Outdoor Unit | ||
| Compressor Type | DC Inverter-driven rotary | |
| Sound Pressure Level | dB (A) | 55 |
| Unit Dimension (WxHxD) | inches | 26.0 x 21.3 x 10.4 |
| Package Dimension (WxHxD) | inches | 31.3 x 24.4 x 14.0 |
| Net / Gross Weight | lb | 64 / 71 |
| Refrigerant / Charge | oz. | R410A / 33.6 |
| Line Set Size (Liquid – Suction) | inches | 1/4" – 1/2" |
| Pre-Charge | Feet | 25 |
| Max. Line Run | Feet | 82 |
| Max. Elevation | Feet | 33 |
| MCA | Amps | 20 |
| MOCP | Amps | 30 |
| Wire Size / # Wires | AWG16 / 4 | |
| Model | OS-09HP220V2TG | |
| System Type | Heat Pump | |
| Power Supply | 208-230V / 60Hz | |
| Rated Current Cooling | Amps | 3.9 |
| Rated Current Heating | Amps | 4.0 |
| System Performance | ||
| Cooling Capacity (Min-Max) | Btu/h | 9,000 |
| Heating Capacity (Min-Max) | Btu/h | 9,000 |
| SEER/EER | 15 / 10.0 | |
| HSPF/COP | 8.2 / 2.9 | |
| Indoor Unit | ||
| Air Flow | CFM | 530/430/390 |
| Sound Pressure Level – T/H/M/L | dB (A) | 40/33/28 |
| Unit Dimension (WxHxD) | inches | 26.8 x 10.1 x 7.0 |
| Package Dimension (WxHxD) | inches | 29.3 x 13.0 x 10.1 |
| Net / Gross Weight | lb | 14 / 17 |
| Outdoor Unit | ||
| Compressor Type | DC Inverter-driven rotary | |
| Sound Pressure Level | dB (A) | 56 |
| Unit Dimension (WxHxD) | inches | 27.6 x 21.3 x 9.5 |
| Package Dimension (WxHxD) | inches | 32.1 x 22.8 x 12.8 |
| Net / Gross Weight | lb | 58 / 63 |
| Refrigerant / Charge | oz. | R410A / 24.0 |
| Line Set Size (Liquid – Suction) | inches | 1/4" – 3/8" |
| Pre-Charge | Feet | 25 |
| Max. Line Run | Feet | 50 |
| Max. Elevation | Feet | 33 |
| MCA | Amps | 10 |
| MOCP | Amps | 15 |
| Wire Size / # Wires | AWG16 / 4 | |
| Model | OS-12HP220V2TG | |
| System Type | Heat Pump | |
| Power Supply | 208-230V / 60Hz | |
| Rated Current Cooling | Amps | 5.9 |
| Rated Current Heating | Amps | 5.5 |
| System Performance | ||
| Cooling Capacity (Min-Max) | Btu/h | 12,000 |
| Heating Capacity (Min-Max) | Btu/h | 12,000 |
| SEER/EER | 15 / 9.0 | |
| HSPF/COP | 8.2 / 3.0 | |
| Indoor Unit | ||
| Air Flow | CFM | 600/530/400 |
| Sound Pressure Level – T/H/M/L | dB (A) | 39/35/31 |
| Unit Dimension (WxHxD) | inches | 30.3 x 10.1 x 7.4 |
| Package Dimension (WxHxD) | inches | 32.9 x 13.0 x 10.4 |
| Net / Gross Weight | lb | 17 / 21 |
| Outdoor Unit | ||
| Compressor Type | DC Inverter-driven rotary | |
| Sound Pressure Level | dB (A) | 57 |
| Unit Dimension (WxHxD) | inches | 30.7 x 21.3 x 9.8 |
| Package Dimension (WxHxD) | inches | 35.8 x 23.0 x 13.2 |
| Net / Gross Weight | lb | 66 / 71 |
| Refrigerant / Charge | oz. | R410A / 32.1 |
| Line Set Size (Liquid – Suction) | inches | 1/4" – 3/8" |
| Pre-Charge | Feet | 25 |
| Max. Line Run | Feet | 82 |
| Max. Elevation | Feet | 33 |
| MCA | Amps | 10 |
| MOCP | Amps | 15 |
| Wire Size / # Wires | AWG16 / 4 | |
| Model | OS-18HP220V2TG | |
| System Type | Heat Pump | |
| Power Supply | 208-230V / 60Hz | |
| Rated Current Cooling | Amps | 8.7 |
| Rated Current Heating | Amps | 8.0 |
| System Performance | ||
| Cooling Capacity (Min-Max) | Btu/h | 18,000 |
| Heating Capacity (Min-Max) | Btu/h | 18,000 |
| SEER/EER | 15 / 9.0 | |
| HSPF/COP | 8.2 / 3.0 | |
| Indoor Unit | ||
| Air Flow | CFM | 750/660/480 |
| Sound Pressure Level – T/H/M/L | dB (A) | 42/39/31 |
| Unit Dimension (WxHxD) | inches | 35.6 x 1 0.8 x 7.8 |
| Package Dimension (WxHxD) | inches | 38.2 x 13.6 x 10.6 |
| Net / Gross Weight | lb | 19 / 25 |
| Outdoor Unit | ||
| Compressor Type | DC Inverter-driven rotary | |
| Sound Pressure Level | dB (A) | 59 |
| Unit Dimension (WxHxD) | inches | 29.9 x 23.2 x 11.2 |
| Package Dimension (WxHxD) | inches | 34.9 x 25.4 x 14.0 |
| Net / Gross Weight | lb | 83 / 88 |
| Refrigerant / Charge | oz. | R410A / 42.3 |
| Line Set Size (Liquid – Suction) | inches | 1/4" – 1/2" |
| Pre-Charge | Feet | 25 |
| Max. Line Run | Feet | 98 |
| Max. Elevation | Feet | 66 |
| MCA | Amps | 14 |
| MOCP | Amps | 20 |
| Wire Size / # Wires | AWG16 / 4 | |
| Model | OS-24HP220V2TG | |
| System Type | Heat Pump | |
| Power Supply | 208-230V / 60Hz | |
| Rated Current Cooling | Amps | 10.6 |
| Rated Current Heating | Amps | 9.7 |
| System Performance | ||
| Cooling Capacity (Min-Max) | Btu/h | 22,000 |
| Heating Capacity (Min-Max) | Btu/h | 22,000 |
| SEER/EER | 15 / 9.0 | |
| HSPF/COP | 8.2 / 3.0 | |
| Indoor Unit | ||
| Air Flow | CFM | 1250/1150/950 |
| Sound Pressure Level – T/H/M/L | dB (A) | 49/43/39 |
| Unit Dimension (WxHxD) | inches | 40.6 x 12.4 x 8.6 |
| Package Dimension (WxHxD) | inches | 43.9 x 15.6 x 11.8 |
| Net / Gross Weight | lb | 27 / 33 |
| Outdoor Unit | ||
| Compressor Type | DC Inverter-driven twin-rotary | |
| Sound Pressure Level | dB (A) | 60 |
| Unit Dimension (WxHxD) | inches | 33.3 x 27.6 x 12.6 |
| Package Dimension (WxHxD) | inches | 38.0 x 29.7 x 15.6 |
| Net / Gross Weight | lb | 104 / 111 |
| Refrigerant / Charge | oz. | R410A / 56.4 |
| Line Set Size (Liquid – Suction) | inches | 3/8" – 5/8" |
| Pre-Charge | Feet | 25 |
| Max. Line Run | Feet | 98 |
| Max. Elevation | Feet | 66 |
| MCA | Amps | 16 |
| MOCP | Amps | 25 |
| Wire Size / # Wires | AWG16 / 4 | |
"24" wide, like my waist size!"
(Warranty Valued at $145 Free)
COOLING ONLY
$832
"Genie has an exclusive in the U.S.A."
OW-P12AC230V5S
230 Volts
We have the 26" sleeve in stock (if needed)
Only $89.00
Back Grille for only $19.47
*12 Year Warranty on Compressor

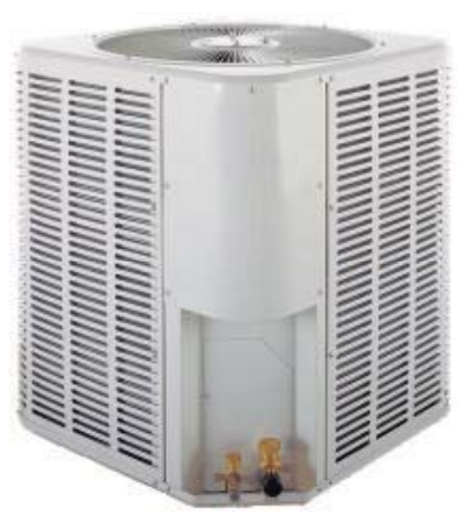

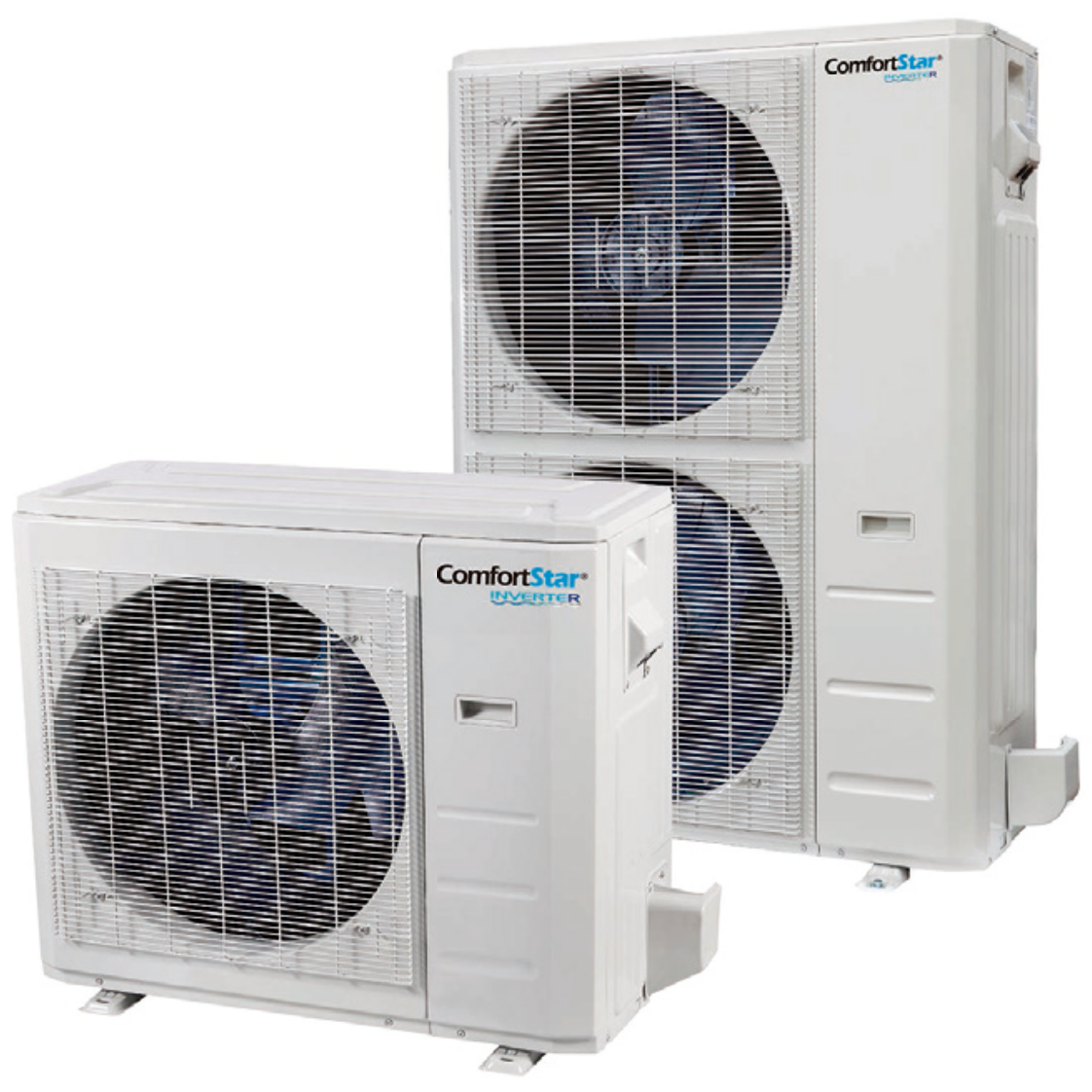

Central Mini Splits

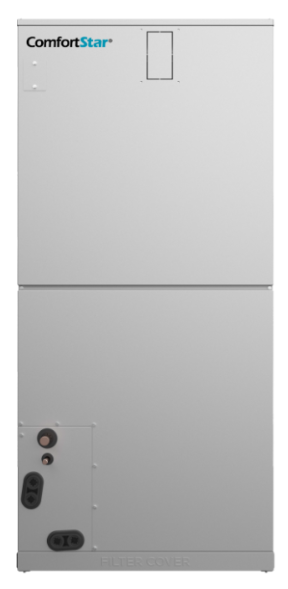

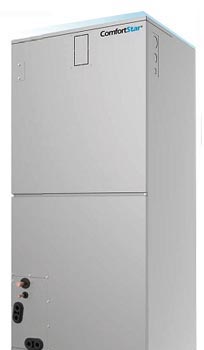

Includes Air-Handler and Condenser!
1½ Ton230 VoltsHEAT PUMP$3647
2 Ton230 VoltsHEAT PUMP$4317
3 Ton230 VoltsHEAT PUMP$6072
4 Ton230 VoltsHEAT PUMP$6922
5 Ton230 VoltsHEAT PUMP$8178

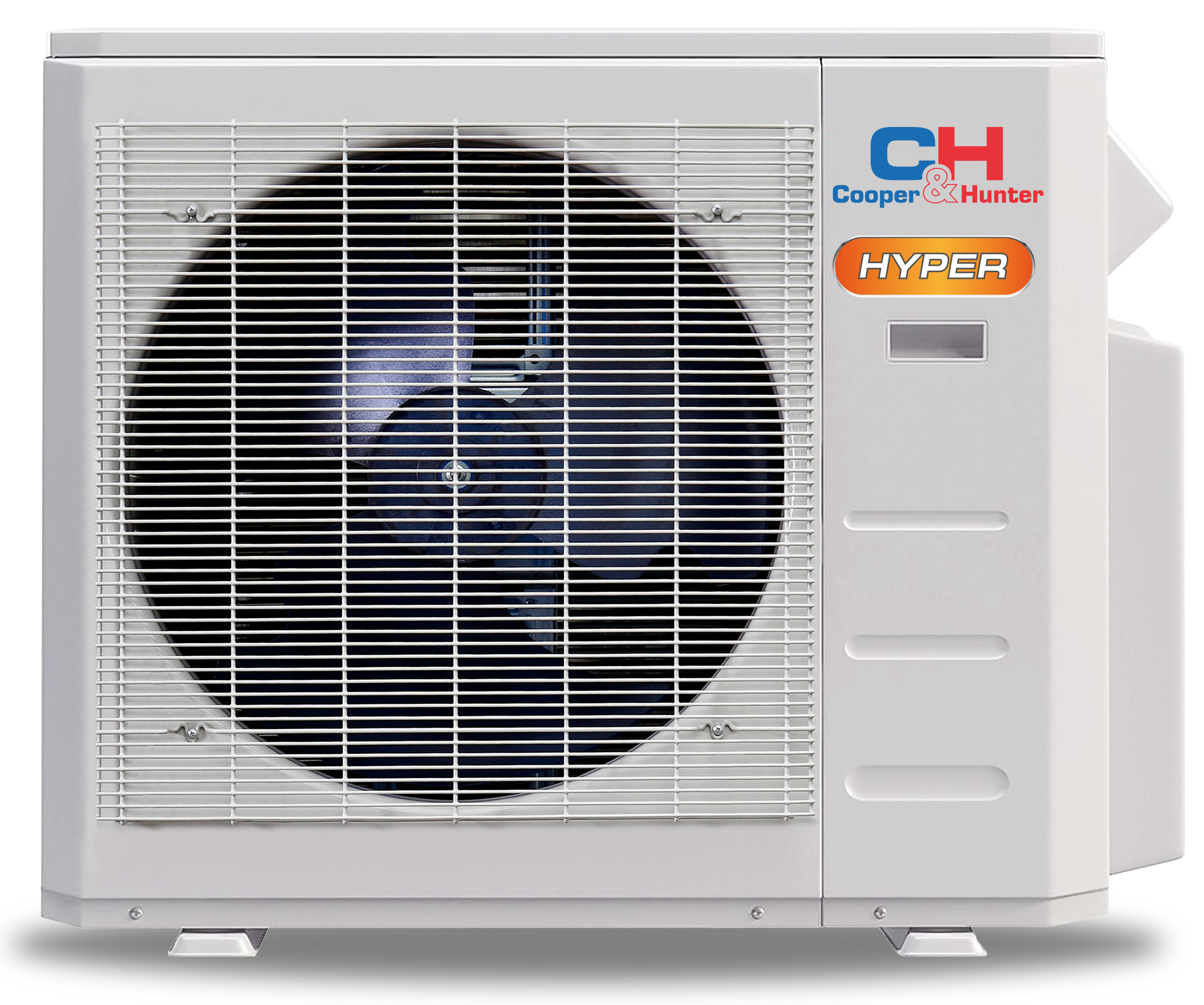

| CH-HPR19M-230VO (Ducted) | ||||
| Cooling Capacity | Heating Capacity | SEER2 | EER2 | COP |
| Btu/h | Btu/h | 19 | 12 | 3.66 |
| 19,000(5,200~23,000) | 20,000(6,400~28,000) | |||
| Outdoor Model | CH-HPR19M-230VO | ||
| Power Supply | Rated | V, Ph, Hz | 208-230V, 1Ph, 60Hz |
| Cooling | Rated Capacity (range) | Btu/h | 19,000(5,200~23,000) |
| Heating | |||
| Rated Capacity (range) | Btu/h | 20,000(6,400~28,000) | |
| HSPF4 | 9.3 | ||
| HSPF5 | 7.5 | ||
| Minimum Circuit Ampacity (MCA) | A | 20 | |
| Max. Fuse | A | 25 | |
| Rated current (RLA) | A | 9.5(3.4~10.3) | |
| Compressor | |||
| Model | KTM240D43UKT | ||
| Type | ROTARY | ||
| Brand | GMCC | ||
| RLA | A | 11 | |
| Input | w | 2,045 | |
| Refrigerant oil | oz | VG74 20.9 | |
| Outdoor fan motor | |||
| Qty | 1 | ||
| Input | w | 150 | |
| RLA | A | 1.7 | |
| Outdoor air flow (Max) | CFM | 2,129.41 | |
| Outdoor noise level (Max) | dB(A) | 61 | |
| Outdoor unit | |||
| Dimensions (WxDxH) | in | 37.24x16.14x31.89 | |
| Packing (WxDxH) | in | 42.91x19.69x34.84 | |
| Net/Gross weight | in | 138.23/149.03 | |
| Refrigerant | |||
| Type/Quantity | oz | R410A | |
| Precharge | ft | 25x2 | |
| Additional Charge (liquid pipe) | oz | 91.71 | |
| Design pressure | PSIG | 550/340 | |
| Refrigerant piping | |||
| Liquid side/Gas side | in | 2x1/4" 2x3/8" | |
| Max. length for all indoor units | ft | 131.23 | |
| Max. length for one indoor unit | ft | 82.02 | |
| Max. height difference between indoor and outdoor | ft | 49.21 | |
| Max. height difference between indoor units | ft | 33 | |
| Ambient temperature | |||
| Cooling | F | 5~122 | |
| Heating | F | -22～75 | |
| CH-HPR28M-230VO (Ducted) | ||||
| Cooling Capacity | Heating Capacity | SEER2 | EER2 | COP |
| Btu/h | Btu/h | 20 | 11.7 | 3.52 |
| 28,000(7,600~33,400) | 28,000(4,500~38,500) | |||
| Outdoor Model | CH-HPR28M-230VO | ||
| Power Supply Rated | V, Ph, Hz | 208-230V, 1Ph, 60Hz | |
| Cooling Rated Capacity (range) | Btu/h | 28,000(7,600~33,400) | |
| Heating | |||
| Rated Capacity (range) | Btu/h | 28,000(4,500~38,500) | |
| HSPF4 | 9.5 | ||
| HSPF5 | 7.5 | ||
| Minimum Circuit Ampacity (MCA) | A | 25 | |
| Max. Fuse | A | 40 | |
| Rated current (RLA) | A | 10.9(5.46~16.05) | |
| Compressor | |||
| Model | KTF310D43UMT | ||
| Type | ROTARY | ||
| Brand | GMCC | ||
| RLA | A | 17.5 | |
| Input | w | 2,765 | |
| Refrigerant oil | oz | VG74 33.8 | |
| Outdoor fan motor | |||
| Qty | 1 | ||
| Input | w | 150 | |
| RLA | A | 1 | |
| Outdoor air flow (Max) | CFM | 2,147.06 | |
| Outdoor noise level (Max) | dB(A) | 63 | |
| Outdoor unit | |||
| Dimensions (WxDxH) | in | 37.24x16.14x31.89 | |
| Packing (WxDxH) | in | 42.91x19.69x34.84 | |
| Net/Gross weight | in | 167.99/179.67 | |
| Refrigerant | |||
| Type/Quantity | oz | R410A | |
| Precharge | ft | 25x3 | |
| Additional Charge (liquid pipe) | oz | 134.04 | |
| Design pressure | PSIG | 550/340 | |
| Refrigerant piping | |||
| Liquid side/Gas side | in | 3x1/4" 2x3/8"+1x1/2" | |
| Max. length for all indoor units | ft | 196.85 | |
| Max. length for one indoor unit | ft | 98.42 | |
| Max. height difference between indoor and outdoor | ft | 49.21 | |
| Max. height difference between indoor units | ft | 33 | |
| Ambient temperature | |||
| Cooling | F | 5~122 | |
| Heating | F | -22～75 | |
| CH-HPR36M-230VO (Ducted) | ||||
| Cooling Capacity | Heating Capacity | SEER2 | EER2 | COP |
| Btu/h | Btu/h | 19 | 11.7 | 3.88 |
| 36,000(17,400~44,000) | 37,000(13,300~52,000) | |||
| Outdoor Model | CH-HPR36M-230VO | ||
| Power Supply Rated | V, Ph, Hz | 208-230V, 1Ph, 60Hz | |
| Cooling Rated Capacity (range) | Btu/h | 36,000(17,400~44,000) | |
| Heating | |||
| Rated Capacity (range) | Btu/h | 37,000(13,300~52,000) | |
| HSPF4 | 10 | ||
| HSPF5 | 8.1 | ||
| Minimum Circuit Ampacity (MCA) | A | 40 | |
| Max. Fuse | A | 60 | |
| Rated current (RLA) | A | 14.2(3.7~21.5) | |
| Compressor | |||
| Model | ATQ360D1UMU | ||
| Type | ROTARY | ||
| Brand | GMCC | ||
| RLA | A | 24 | |
| Input | w | 3,040 | |
| Refrigerant oil | oz | VG74 47.3 | |
| Outdoor fan motor | |||
| Qty | 2 | ||
| Input | w | 126 | |
| RLA | A | 2.5 | |
| Outdoor air flow (Max) | CFM | 4,500 | |
| Outdoor noise level (Max) | dB(A) | 60 | |
| Outdoor unit | |||
| Dimensions (WxDxH) | in | 37.48x16.34x52.48 | |
| Packing (WxDxH) | in | 43.11x19.49x58.27 | |
| Net/Gross weight | in | 223.11/253.97 | |
| Refrigerant | |||
| Type/Quantity | oz | R410A | |
| Precharge | ft | 25x4 | |
| Additional Charge (liquid pipe) | oz | 162.26 | |
| Design pressure | PSIG | 550/340 | |
| Refrigerant piping | |||
| Liquid side/Gas side | in | 4x1/4" 2x3/8"+2x1/2" | |
| Max. length for all indoor units | ft | 262.46 | |
| Max. length for one indoor unit | ft | 114.83 | |
| Max. height difference between indoor and outdoor | ft | 49.21 | |
| Max. height difference between indoor units | ft | 33 | |
| Ambient temperature | |||
| Cooling | F | 5~122 | |
| Heating | F | -22～75 | |
| CH-HPR48M-230VO (Ducted) | ||||
| Cooling Capacity | Heating Capacity | SEER2 | EER2 | COP |
| Btu/h | Btu/h | 20.9 | 11.7 | 3.68 |
| 47,000(18,500~51,000) | 49,000(12,000~59,000) | |||
| Outdoor Model | CH-HPR48M-230VO | ||
| Power Supply Rated | V, Ph, Hz | 208-230V, 1Ph, 60Hz | |
| Cooling Rated Capacity (range) | Btu/h | 47,000(18,500~51,000) | |
| Heating | |||
| Rated Capacity (range) | Btu/h | 49,000(12,000~59,000) | |
| HSPF4 | 8.9 | ||
| HSPF5 | 7.4 | ||
| Minimum Circuit Ampacity (MCA) | A | 42 | |
| Max. Fuse | A | 50 | |
| Rated current (RLA) | A | 18.2(5.8~21.2) | |
| Compressor | |||
| Model | EAPQ420D1UMUA | ||
| Type | ROTARY | ||
| Brand | GMCC | ||
| RLA | A | 30 | |
| Input | w | 3,565 | |
| Refrigerant oil | oz | VG74 49.4 | |
| Outdoor fan motor | |||
| Qty | 2 | ||
| Input | w | 126 | |
| RLA | A | 1 | |
| Outdoor air flow (Max) | CFM | 4,500 | |
| Outdoor noise level (Max) | dB(A) | 65 | |
| Outdoor unit | |||
| Dimensions (WxDxH) | in | 37.48x16.34x52.48 | |
| Packing (WxDxH) | in | 43.11x19.49x58.27 | |
| Net/Gross weight | in | 238.32/269.84 | |
| Refrigerant | |||
| Type/Quantity | oz | R410A | |
| Precharge | ft | 25x5 | |
| Additional Charge (liquid pipe) | oz | 162.26 | |
| Design pressure | PSIG | 550/340 | |
| Refrigerant piping | |||
| Liquid side/Gas side | in | 5x1/4" 3x3/8"+2x1/2" | |
| Max. length for all indoor units | ft | 262.46 | |
| Max. length for one indoor unit | ft | 114.83 | |
| Max. height difference between indoor and outdoor | ft | 49.21 | |
| Max. height difference between indoor units | ft | 33 | |
| Ambient temperature | |||
| Cooling | F | 5~122 | |
| Heating | F | -22～75 | |
| CH-HPR55M-230VO (Ducted) | ||||
| Cooling Capacity | Heating Capacity | SEER2 | EER2 | COP |
| Btu/h | Btu/h | 18.8 | 10.5 | 3.1 |
| 55,000(19,400~57,000) | 55,000(15,500~61,500) | |||
| Outdoor Model | CH-HPR55M-230VO | ||
| Power Supply Rated | V, Ph, Hz | 208-230V, 1Ph, 60Hz | |
| Cooling Rated Capacity (range) | Btu/h | 55,000(19,400~57,000) | |
| Heating | |||
| Rated Capacity (range) | Btu/h | 55,000(15,500~61,500) | |
| HSPF4 | 9.3 | ||
| HSPF5 | 7.3 | ||
| Minimum Circuit Ampacity (MCA) | A | 40 | |
| Max. Fuse | A | 60 | |
| Rated current (RLA) | A | 23.5(3.7~27.2) | |
| Compressor | |||
| Model | EAPQ420D1UMUA | ||
| Type | ROTARY | ||
| Brand | GMCC | ||
| RLA | A | 25 | |
| Input | w | 3,565 | |
| Refrigerant oil | oz | VG74 49.4 | |
| Outdoor fan motor | |||
| Qty | 2 | ||
| Input | w | 126 | |
| RLA | A | 2.5 | |
| Outdoor air flow (Max) | CFM | 4,500 | |
| Outdoor noise level (Max) | dB(A) | 61 | |
| Outdoor unit | |||
| Dimensions (WxDxH) | in | 37.48x16.34x52.48 | |
| Packing (WxDxH) | in | 43.11x19.49x58.27 | |
| Net/Gross weight | in | 233.03/265.87 | |
| Refrigerant | |||
| Type/Quantity | oz | R410A | |
| Precharge | ft | 25x5 | |
| Additional Charge (liquid pipe) | oz | 162.26 | |
| Design pressure | PSIG | 550/340 | |
| Refrigerant piping | |||
| Liquid side/Gas side | in | 5x1/4" 3x3/8"+2x1/2" | |
| Max. length for all indoor units | ft | 262.46 | |
| Max. length for one indoor unit | ft | 114.83 | |
| Max. height difference between indoor and outdoor | ft | 49.21 | |
| Max. height difference between indoor units | ft | 33 | |
| Ambient temperature | |||
| Cooling | F | 5~122 | |
| Heating | F | -22～75 | |
CENTRAL UNITS - Air Handlers and Condensers
1½ Ton230VComplete System$4010
2 Ton230VComplete System$4723
2½ Ton230VComplete System$5654
3 Ton230VComplete System$5821
4 Ton230VComplete System$7342
5 Ton230VComplete System$7854
Complete Systems!
High Efficiency
Up to 19.4 SEER
10/10 WARRANTY
| OUTDOOR | CPR18CD(O) | CPR24CD(O) | CPR30CD(O) | CPR36CD(0) | CPR48CD(O) | CPR60CD(O) | ||
|---|---|---|---|---|---|---|---|---|
| Power supply (Outdoor) | V- Ph-Hz | 208/230V,1Ph, 60Hz | 208/230V,1Ph,60Hz | 208/230V,1Ph,60Hz | 208/230V,1Ph,60Hz | 208/230V,1Ph,60Hz | 208/230V,1Ph,60Hz | |
| MINIMUM CIRCUIT AMPACITY(Outdoor) | A | 16 | 19 | 20 | 24 | 34 | 34 | |
| MAX.FUSE(Outdoor) | A | 25 | 30 | 35 | 40 | 50 | 60 | |
| Cooling | EER | Btu/w | 11.1 | 11.3 | 10.9 | 10.4 | 9.3 | 10.3 |
| SEER | Btu/w | 19 | 19.4 | 19.5 | 18 | 17.3 | 18 | |
| Outdoor fan motor | RLA | A | 1 | 1 | 1.48 | 1.48 | 2.4 | 2.4 |
| Speed | r/min | 840/700/650 | 810/700/450 | 950/700/500 | 950/700/500 | 850/750/650 | 850/750/650 | |
| Outdoor air flow | m3/h | 2465 | 3700 | 5100 | 5100 | 7650 | 7650 | |
| Outdoor air flow | CFM | 1450.00 | 2175 | 3000.00 | 3000.00 | 4500.00 | 4500.00 | |
| Outdoor noise level | dB(A) | 54 | 56.5 | 61.5 | 61 | 59 | 61 | |
| Throttle type | / | EXV | EXV | EXV | EXV | EXV | EXV | |
| Outdoor unit | Dimension(W*D*H) | mm | 805x330x554 | 890x342x673 | 946x410x810 | 946x410x810 | 952x415x1333 | 952x415x1333 |
| Dimension(W*D*H) | inch | 31.69x12.99x21.81 | 35.04x13.46x26.50 | 37.24x16.14x31.89 | 37.24x16.14x31.89 | 37.48x16.34x52.48 | 37.48x16.34x52.48 | |
| Packing (W*D*H) | mm | 915x370x615 | 995x398x740 | 1090x500x885 | 1090x500x885 | 1095x495x1480 | 1095x495x1480 | |
| Packing (W*D*H) | inch | 36.02x14.57x24.21 | 39.17x15.67x29.13 | 42.91x19.69x34.84 | 42.91x19.69x34.84 | 43.11x19.49x58.27 | 43.11x19.49x58.27 | |
| Net/Gross weight | Kg | 34.4/36.9 | 46.4/49.5 | 64.3/68.7 | 68.8/73.1 | 98.7/112.8 | 98.5/112.7 | |
| Net/Gross weight | lbs. | 75.84/81.35 | 102.3/109.1 | 141.76/151.46 | 151.68/161.16 | 217.59/248.68 | 217.1/248.5 | |
| Refrigerant type | oz | R410A/56.44 | R410A/74.08 | R410A/107.59 | R410A/130.51 | R410A/165.79 | R410A/172.84 | |
| Refrigerant precharge | ft | 65 | 65 | 65 | 65 | 65 | 65 | |
| Additional charge for each ft | oz | 0.69 | 0.69 | 0.69 | 0.69 | 0.69 | 0.69 | |
| Design pressure | PSIG | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | |
| Refrigerant piping | Liquid side/ Gas side | mm(inch) | 9.52mm(3/8in) 19mm(3/4in) | 9.52mm(3/8in) 19mm(3/4in) | 9.52mm(3/8in) 19mm(3/4in) | 9.52mm(3/8in) 19mm(3/4in) | 9.52mm(3/8in) 19mm(3/4in) | 9.52mm(3/8in) 22mm(7/8in) |
| Max. refrigerant piping length | m | 30 | 50 | 65 | 65 | 65 | 65 | |
| Max. refrigerant piping length | ft | 98.42 | 164.04 | 213.25 | 213.25 | 213.25 | 213.25 | |
| Max. allowable elevation | m | 20 | 25 | 30 | 30 | 30 | 30 | |
| Max. allowable elevation | ft | 65.62 | 82.02 | 98.42 | 98.42 | 98.42 | 98.42 | |
| Thermostat type | Wire Control | Wire Control | Wire Control | Wire Control | Wire Control | Wire Control | ||
| Room temperature | Indoor(cooling/ heating) | °C | 17∼32/0∼30 | 17∼32/0∼30 | 17∼32/0∼30 | 17∼32/0∼30 | 17∼32/0∼30 | 17∼32/0∼30 |
| Indoor(cooling/ heating) | °F | 62∼90/32∼86 | 62∼90/32∼86 | 62∼90/32∼86 | 62∼90/32∼86 | 62∼90/32∼86 | 62∼90/32∼86 | |
| Outdoor(cooling/heating) | °C | -15∼50/-15∼24 | -15∼50/-15∼24 | -15∼50/-15∼24 | -15∼50/-15∼24 | -15∼50/-15∼24 | -15∼50/-15∼24 | |
| Outdoor(cooling/heating) | °F | 5-122/5-75 | 5-122/5-75 | 5-122/5-75 | 5-122/5-75 | 5-122/5-75 | 5-122/5-75 | |
One of the most popular units for Hotels/Motels
Packaged Terminal AC with HEAT
Cord Included
42 inches × 16 inches
PTAC 42" Units - CALL FOR QUANTITY PRICING!
CH-PT09HSGF 9,000 BTU230 VoltsHEAT STRIP$1064 CH-PT09HPGF 9,000 BTU230 VoltsHEAT PUMP$1131 CH-PT12HSGF12,000 BTU230 VoltsHEAT STRIP$1257 CH-PT12HPGF12,000 BTU230 VoltsHEAT PUMP$1493 CH-PT15HSGF14,700 BTU230 VoltsHEAT STRIP$1047 CH-PT15HPGF14,700 BTU230 VoltsHEAT PUMP$1256 CH-PTHE12HS12,000 BTU230 VoltsHEAT STRIP$1308 CH-PTHE15HS14,700 BTU230 VoltsHEAT STRIP$1308

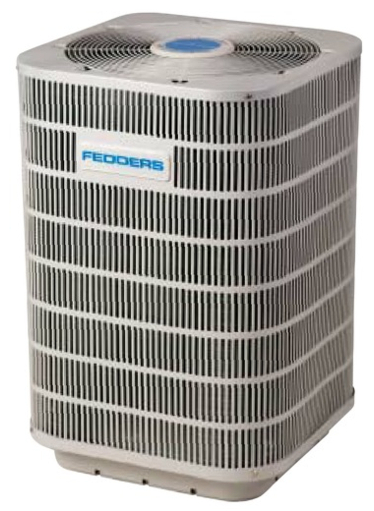

CONDENSER UNITS
AIR CONDITIONING
1.5 TON
$1283.00
COOLING ONLY
28,000 BTUs
$1367.00
OS-09HP115V1S 9,000 BTU115 Volts HEAT PUMP$889
OS-12HP230V1D12,000 BTU230 VoltsHEAT PUMP$881
OS-18HP230V1D18,000 BTU230 VoltsHEAT PUMP$1342
OS-24HP230V1D22,000 BTU230 VoltsHEAT PUMP$1664
| Model | OS-09HP115V2TG | |
| System Type | Heat Pump | |
| Power Supply | 115V / 60Hz | |
| Rated Current Cooling | Amps | 8.9 |
| Rated Current Heating | Amps | 7.9 |
| System Performance | ||
| Cooling Capacity (Min-Max) | Btu/h | 9,000 |
| Heating Capacity (Min-Max) | Btu/h | 9,000 |
| SEER/EER | 15 / 9.0 | |
| HSPF/COP | 8.2 / 3.2 | |
| Indoor Unit | ||
| Air Flow | CFM | 480/420/320 |
| Sound Pressure Level – T/H/M/L | dB (A) | 39/35/29 |
| Unit Dimension (WxHxD) | inches | 26.8 x 10.1 x 7.0 |
| Package Dimension (WxHxD) | inches | 29.3 x 13.0 x 10.1 |
| Net / Gross Weight | lb | 15 / 18 |
| Outdoor Unit | ||
| Compressor Type | DC Inverter-driven rotary | |
| Sound Pressure Level | dB (A) | 56 |
| Unit Dimension (WxHxD) | inches | 26.0 x 21.3 x 10.4 |
| Package Dimension (WxHxD) | inches | 31.3 x 24.4 x 14.0 |
| Net / Gross Weight | lb | 64 / 71 |
| Refrigerant / Charge | oz. | R410A / 31.8 |
| Line Set Size (Liquid – Suction) | inches | 1/4" – 3/8" |
| Pre-Charge | Feet | 25 |
| Max. Line Run | Feet | 82 |
| Max. Elevation | Feet | 33 |
| MCA | Amps | 15 |
| MOCP | Amps | 25 |
| Wire Size / # Wires | AWG16 / 4 | |
| Model | OS-12HP115V2TG | |
| System Type | Heat Pump | |
| Power Supply | 115V / 60Hz | |
| Rated Current Cooling | Amps | 11.9 |
| Rated Current Heating | Amps | 11.7 |
| System Performance | ||
| Cooling Capacity (Min-Max) | Btu/h | 12,000 |
| Heating Capacity (Min-Max) | Btu/h | 12,000 |
| SEER/EER | 15 / 8.7 | |
| HSPF/COP | 8.2 / 3.2 | |
| Indoor Unit | ||
| Air Flow | CFM | 580/500/400 |
| Sound Pressure Level – T/H/M/L | dB (A) | 39/35/29 |
| Unit Dimension (WxHxD) | inches | 30.3 x 10.1 x 7.4 |
| Package Dimension (WxHxD) | inches | 32.9 x 13.0 x 10.4 |
| Net / Gross Weight | lb | 17 / 21 |
| Outdoor Unit | ||
| Compressor Type | DC Inverter-driven rotary | |
| Sound Pressure Level | dB (A) | 55 |
| Unit Dimension (WxHxD) | inches | 26.0 x 21.3 x 10.4 |
| Package Dimension (WxHxD) | inches | 31.3 x 24.4 x 14.0 |
| Net / Gross Weight | lb | 64 / 71 |
| Refrigerant / Charge | oz. | R410A / 33.6 |
| Line Set Size (Liquid – Suction) | inches | 1/4" – 1/2" |
| Pre-Charge | Feet | 25 |
| Max. Line Run | Feet | 82 |
| Max. Elevation | Feet | 33 |
| MCA | Amps | 20 |
| MOCP | Amps | 30 |
| Wire Size / # Wires | AWG16 / 4 | |
| Model | OS-09HP220V2TG | |
| System Type | Heat Pump | |
| Power Supply | 208-230V / 60Hz | |
| Rated Current Cooling | Amps | 3.9 |
| Rated Current Heating | Amps | 4.0 |
| System Performance | ||
| Cooling Capacity (Min-Max) | Btu/h | 9,000 |
| Heating Capacity (Min-Max) | Btu/h | 9,000 |
| SEER/EER | 15 / 10.0 | |
| HSPF/COP | 8.2 / 2.9 | |
| Indoor Unit | ||
| Air Flow | CFM | 530/430/390 |
| Sound Pressure Level – T/H/M/L | dB (A) | 40/33/28 |
| Unit Dimension (WxHxD) | inches | 26.8 x 10.1 x 7.0 |
| Package Dimension (WxHxD) | inches | 29.3 x 13.0 x 10.1 |
| Net / Gross Weight | lb | 14 / 17 |
| Outdoor Unit | ||
| Compressor Type | DC Inverter-driven rotary | |
| Sound Pressure Level | dB (A) | 56 |
| Unit Dimension (WxHxD) | inches | 27.6 x 21.3 x 9.5 |
| Package Dimension (WxHxD) | inches | 32.1 x 22.8 x 12.8 |
| Net / Gross Weight | lb | 58 / 63 |
| Refrigerant / Charge | oz. | R410A / 24.0 |
| Line Set Size (Liquid – Suction) | inches | 1/4" – 3/8" |
| Pre-Charge | Feet | 25 |
| Max. Line Run | Feet | 50 |
| Max. Elevation | Feet | 33 |
| MCA | Amps | 10 |
| MOCP | Amps | 15 |
| Wire Size / # Wires | AWG16 / 4 | |
| Model | OS-12HP220V2TG | |
| System Type | Heat Pump | |
| Power Supply | 208-230V / 60Hz | |
| Rated Current Cooling | Amps | 5.9 |
| Rated Current Heating | Amps | 5.5 |
| System Performance | ||
| Cooling Capacity (Min-Max) | Btu/h | 12,000 |
| Heating Capacity (Min-Max) | Btu/h | 12,000 |
| SEER/EER | 15 / 9.0 | |
| HSPF/COP | 8.2 / 3.0 | |
| Indoor Unit | ||
| Air Flow | CFM | 600/530/400 |
| Sound Pressure Level – T/H/M/L | dB (A) | 39/35/31 |
| Unit Dimension (WxHxD) | inches | 30.3 x 10.1 x 7.4 |
| Package Dimension (WxHxD) | inches | 32.9 x 13.0 x 10.4 |
| Net / Gross Weight | lb | 17 / 21 |
| Outdoor Unit | ||
| Compressor Type | DC Inverter-driven rotary | |
| Sound Pressure Level | dB (A) | 57 |
| Unit Dimension (WxHxD) | inches | 30.7 x 21.3 x 9.8 |
| Package Dimension (WxHxD) | inches | 35.8 x 23.0 x 13.2 |
| Net / Gross Weight | lb | 66 / 71 |
| Refrigerant / Charge | oz. | R410A / 32.1 |
| Line Set Size (Liquid – Suction) | inches | 1/4" – 3/8" |
| Pre-Charge | Feet | 25 |
| Max. Line Run | Feet | 82 |
| Max. Elevation | Feet | 33 |
| MCA | Amps | 10 |
| MOCP | Amps | 15 |
| Wire Size / # Wires | AWG16 / 4 | |
| Model | OS-18HP220V2TG | |
| System Type | Heat Pump | |
| Power Supply | 208-230V / 60Hz | |
| Rated Current Cooling | Amps | 8.7 |
| Rated Current Heating | Amps | 8.0 |
| System Performance | ||
| Cooling Capacity (Min-Max) | Btu/h | 18,000 |
| Heating Capacity (Min-Max) | Btu/h | 18,000 |
| SEER/EER | 15 / 9.0 | |
| HSPF/COP | 8.2 / 3.0 | |
| Indoor Unit | ||
| Air Flow | CFM | 750/660/480 |
| Sound Pressure Level – T/H/M/L | dB (A) | 42/39/31 |
| Unit Dimension (WxHxD) | inches | 35.6 x 1 0.8 x 7.8 |
| Package Dimension (WxHxD) | inches | 38.2 x 13.6 x 10.6 |
| Net / Gross Weight | lb | 19 / 25 |
| Outdoor Unit | ||
| Compressor Type | DC Inverter-driven rotary | |
| Sound Pressure Level | dB (A) | 59 |
| Unit Dimension (WxHxD) | inches | 29.9 x 23.2 x 11.2 |
| Package Dimension (WxHxD) | inches | 34.9 x 25.4 x 14.0 |
| Net / Gross Weight | lb | 83 / 88 |
| Refrigerant / Charge | oz. | R410A / 42.3 |
| Line Set Size (Liquid – Suction) | inches | 1/4" – 1/2" |
| Pre-Charge | Feet | 25 |
| Max. Line Run | Feet | 98 |
| Max. Elevation | Feet | 66 |
| MCA | Amps | 14 |
| MOCP | Amps | 20 |
| Wire Size / # Wires | AWG16 / 4 | |
| Model | OS-24HP220V2TG | |
| System Type | Heat Pump | |
| Power Supply | 208-230V / 60Hz | |
| Rated Current Cooling | Amps | 10.6 |
| Rated Current Heating | Amps | 9.7 |
| System Performance | ||
| Cooling Capacity (Min-Max) | Btu/h | 22,000 |
| Heating Capacity (Min-Max) | Btu/h | 22,000 |
| SEER/EER | 15 / 9.0 | |
| HSPF/COP | 8.2 / 3.0 | |
| Indoor Unit | ||
| Air Flow | CFM | 1250/1150/950 |
| Sound Pressure Level – T/H/M/L | dB (A) | 49/43/39 |
| Unit Dimension (WxHxD) | inches | 40.6 x 12.4 x 8.6 |
| Package Dimension (WxHxD) | inches | 43.9 x 15.6 x 11.8 |
| Net / Gross Weight | lb | 27 / 33 |
| Outdoor Unit | ||
| Compressor Type | DC Inverter-driven twin-rotary | |
| Sound Pressure Level | dB (A) | 60 |
| Unit Dimension (WxHxD) | inches | 33.3 x 27.6 x 12.6 |
| Package Dimension (WxHxD) | inches | 38.0 x 29.7 x 15.6 |
| Net / Gross Weight | lb | 104 / 111 |
| Refrigerant / Charge | oz. | R410A / 56.4 |
| Line Set Size (Liquid – Suction) | inches | 3/8" – 5/8" |
| Pre-Charge | Feet | 25 |
| Max. Line Run | Feet | 98 |
| Max. Elevation | Feet | 66 |
| MCA | Amps | 16 |
| MOCP | Amps | 25 |
| Wire Size / # Wires | AWG16 / 4 | |
STRAIGHT COOL CONDENSER
1.5 TON
$1663.00
13 SEER
MIA18-13
HEAT PUMP CONDENSER
1.5 TON
$1333.00
13 SEER
Mhh-18-410
| Dimensions | |
|---|---|
| Height | 23.8 [604] |
| Width | 24 [610] |
| Depth | 24 [610] |
| Refrigerant Line | |
| Liquid Line Dimension (In) | 3/8 |
| Vapor Line Dimension (In) | 5/8 |
| Max Refrigerant Line Length (Ft) | 100 |
| Max Vertical Distance (Ft) | 50 |
| Outdoor above Indoor Unit | 50 |
| Indoor above Outdoor Unit | 40 |
| Refrigerant Connection Type | Jointing |
| Refrigerant Type / Charge (Oz) | R-22 /88 |
| Weight (lbs) | |
| Net | 118.8 |
| Ship | 129.8 |
| Unit Model (Btu/h) | Dimensions (inches) | Refrigerant Connection Service Valve Size | |||
|---|---|---|---|---|---|
| “H” in (mm) | “W” in (mm) | “L” in (mm) | Liquid | Suction | |
| 1 1/2 Ton (Cooling Unit) | 24-15/16 (633) | 21-7/8 (554) | 21-7/8 (554) | 3/8 | 3/4 |
| 1 1/2 Ton (Heat Pump Unit) | 24-15/16 (633) | 23-5/8 (600) | 23-5/8 (600) | 3/8 | 3/4 |
| 2 Ton | 24-15/16 (633) | 23-5/8 (600) | 23-5/8 (600) | 3/8 | 3/4 |
| 2 1/2 Ton | 24-15/16 (633) | 28 (710) | 28 (710) | 3/8 | 3/4 |
| 3 | 24-15/16 (633) | 29-1/8 (740) | 29-1/8 (740) | 3/8 | 3/4 |
| 3 1/2 Ton | 29-7/8 (759) | 28 (710) | 28 (710) | 3/8 | 3/4 |
| 4 Ton | 33-3/16 (843) | 28 (710) | 28 (710) | 3/8 | 7/8 |
| 5 Ton | 33-3/16 (843) | 29-1/8 (740) | 29-1/8 (740) | 3/8 | 7/8 |
Air Handlers and Condensers
AIR HANDLERS
AHU18-SG21½ Ton230VAIR HANDLER$2087 AHU24-SG22 Ton230VAIR HANDLER$2330 AHU30-SG22½ Ton230VAIR HANDLER$2577 AHU36-SG23 Ton230VAIR HANDLER$2598 AHU48-SG24 Ton230VAIR HANDLER$2720 AHU48-SG25 Ton230VAIR HANDLER$3027CONDENSERS
CPR18CD 118,000 BTU230VCONDENSER$1923 CPR24CD 224,000 BTU230VCONDENSER$2393 CPR30CD 330,000 BTU230VCONDENSER$3077 CPR36CD 336,000 BTU230VCONDENSER$3223 CPR48CD 448,000 BTU230VCONDENSER$4622 CPR60CD 660,000 BTU230VCONDENSER$4827
UP TO 19.4 SEER 10/10 WARRANTY!
10,000 BTUs
115 Volts
13
Window Kit Available
| Cooling Capacity (Btu/hr) | 10100 |
| Type | Window |
| Heating Mode | Yes |
| Product Class | 11. With reverse cycle, with louvered sides, and less than 20,000 Btu/h |
| Variable Speed Compressor | Yes |
| Low Noise | No |
| Refrigerant Type | R-410A |
| Refrigerant with GWP | R-410A (GWP:2088) |
| Combined Energy Efficiency Ratio (CEER) | 10.8 |
| Percent Less Energy Use than US Federal Standard | 10 |
| Annual Energy Use (kWh/yr) | 701 |
Portable Air Conditioners
DUAL HOSE PORTABLE AIR CONDITIONERS
ONLY A FOOL WOULD BUY A SINGLE-HOSE OVER A DUAL-HOSE PORTABLE AIR CONDITIONER.
"CLICK HERE"
HEAT PUMP
115 Volts
14,000 BTU
$1160
15" Lineset Included
1 Year Part / 5 Years Compressor Warranty
16 - 22 SEER Rating
12000 BTU115 VoltHEAT PUMP$1108.00 12000 BTU230 VoltCOOL ONLY $693.00 12000 BTU230 VoltHEAT PUMP $935.00 18000 BTU230 VoltHEAT PUMP$1458.00 36000 BTU230 VoltHEAT PUMP$2663.00
TERMS
CONTACT
DISCLAIMER
CONTACT@GENIEAC.COM
