THIS WEEK'S SPECIALS
8000 BTU
115V
Remote Control
WINDOW or WALL
ONLY! $330.00 Sleeve and Rear Grille Sold Separately| FHWW082WCE | |
|---|---|
| Height: | 13 7/32" |
| Width: | 18 1/2" |
| Depth: | 15 1/2" |
| Window Width Minimum: | 23" |
| Window Width Maximum: | 36" |
| Window Height Minimum: | 14" |
| Cool Area: | 350 sq. |
| BTU (Cool): | 8,000 BTU |
| Combined Energy Efficiency Ratio: | 10.9 |
| Set Temperature Range: | 90 F |
| Dehumidification - Pints per Hour: | 1.7 |
| Amps (Cool): | 6.8 Amps |
| Plug Type: | LCDI 5-15P |
| Voltage Rating: | 115 V |
| Watts (Cool): | 720 Watts |
24" Builder Model Solid Sided
230 Volts 12,000 BTU
$696
I might be cheap but I'm high Class!
| Model | SG-TTW-10ESE | SG-TTW-12ESEZ | SG-TTW-12ESE | SG-TTW-14 |
|---|---|---|---|---|
| Power Supply (Ph/V/Hz) | 1/115/60Hz | 1/115/60Hz | 1/230-208/60Hz | 1/230-208/60Hz |
| Dehumidifying Capacity (Pints/Day) | 60 | 81.6 | 81.6 | 100.8 |
| Rated Cooling Capacity (BTU/h) | 10000 | 12000 | 12000/11700 | 14000/13600 |
| Cooling Power Input (Watts) | 1060 | 1280 | 1280/1240 | 1650/1600 |
| Rated Current Cooling (Amperage) | 9.5 | 11.7 | 6.0/6.5 | 7.0/7.5 |
| EER | 9.4 | 9.4 | 9.4 | 8.5 |
| Noise Level dB(A) (High/Med/Low) | 58/56/54 | 59/57/55 | 59/57/55 | 59/57/55 |
| CFM (High/Med/Low) | 290/260/230 | 300/266/225 | 300/266/225 | 320/290/260 |
| Power Plug Type | NEMA 5-15P | NEMA 5-15P | NEMA 6-15P | NEMA 6-15P |
| Dimensions (W x H x D) | 24 x 14.50 x 20.625 | 24” x 14.50” x 20.625” | 24” x 14.50” x 20.625” | 24” x 14.50” x 20.625” |
| Package Dimensions (W x H x D) | 28.50” x 16.375” x 27.125” | 28.5” x 16.375” x 27.125” | 28.5” x 16.375” x 27.125” | 28.5” x 16.375” x 27.125” |
| Net/Gross Weight (lbs) | 74/86 | 76.2/88.3 | 76.2/86 | 78.3/90.4 |
| Refrigerant | R-410A | R-410A | R-410A | R-410A |
1 & 5 YR WARRANTY • HEATING & COOLING
OS-09HP230V2NG
9,000 BTU
230 Volts
HEAT PUMP
$730.00
"24" wide, like my waist size!"
(Warranty Valued at $145 Free)
COOLING ONLY
$832
"Genie has an exclusive in the U.S.A."
OW-P12AC230V5S
230 Volts
We have the 26" sleeve in stock (if needed)
Only $89.00
Back Grille for only $19.47
*12 Year Warranty on Compressor
CORD INCLUDED
"I have the perfect measurements 42" × 16"!"
32HP12CD35
12,000 BTU
230 Volts
HEAT PUMP
$997.00
| Model | 32HP12CD35 | |||
| Power supply | V-Ph-Hz | 208_230V_1Ph_60HZ | ||
| Capacity | Btu/h | 12000/11800 | ||
| Cooling | Input | W | 1040/1020 | |
| (Standard conditions) | Current | A | 5.3/5.8 | |
| EER | Btu/h/W | 10.5 | ||
| Capacity | Btu/h | 10900/8900 | ||
| Heating(PTC) | Input(Heater) | W | 3500/2897 | |
| Current | A | 15.3/13.7 | ||
| Capacity | Btu/h | 10800/10500 | ||
| Heating(Heat pump) | Input | W | 890/850 | |
| (Standard conditions) | Current | A | 5.0/5.3 | |
| COP | W/W | 3.2 | ||
| Starting current | A | 45.9 | ||
| Model | KSM100N11VEZ | |||
| Type | ROTARY | |||
| Brand | GMCC | |||
| Capacity | W | 3590/3620 | ||
| Input | W | 850/875±3% | ||
| Compressor | Rated current | A | 4.18/3.85±3% | |
| Locked rotor Amp(LRA) | A | 28.5±10% | ||
| Thermal protector | UP-A2H/HPA-325H | |||
| Thermal protector position | INTERNAL | |||
| Capacitor | uF | 35 | ||
| Refrigerant oil/oil charge | ml | VG68 300±15 | ||
| Model | ZKFP-25-8-157L | |||
| Indoor side fan motor(DC) | Speed(hi/mi/lo) | r/min | cooling:1110/930 heating:1110/1020 | |
| Insulation class | B | |||
| Waterproofing class | IP20 | |||
| Model | YKT-58-4-3L | |||
| Input | W | 87 | ||
| Outdoor side fan motor | Capacitor | uF | 3 | |
| Speed(hi/mi/lo) | r/min | 1580 | ||
| Capacitor class | S3 | |||
| Insulation class | B | |||
| a.Number of rows | 2 | |||
| b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 | ||
| c.Fin spacing | mm | 1.2 | ||
| Evaporator | d.Fin type (code) | Hydrophilic aluminum | ||
| e.Tube outside dia.and type | mm | Φ7,Inner groove tube | ||
| f.Coil length x height x width | mm | 700x252x26.74 | ||
| g.Number of circuits | 2 | |||
| Indoor side air flow(Hi/Mi/Lo) | m3/h | 745/0/585 | ||
| ft3/min | 438.24///344.12 | |||
| Indoor side noise level (Hi/Mi/Lo) | dB(A) | 52/0/51.5 | ||
| a.Number of rows | 3 | |||
| b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 | ||
| c.Fin spacing | mm | 1.2 | ||
| Condenser | d.Fin type (code) | Hydrophilic aluminum | ||
| e.Tube outside dia.and type | mm | Φ7,Inner groove tube | ||
| f.Coil length x height x width | mm | 635x357x40.11 | ||
| g.Number of circuits | 3 | |||
| Outdoor side noise level(Hi) | dB(A) | 67 | ||
| Refrigerant type | R32 | |||
| Refrigerant type | kg | 0.76 | ||
| oz(1kg=35.274oz) | 26.80824 | |||
| Design pressure(145psi=1MPa )(L/H) | psi | 300/580 | ||
| Connection wiring | 12#x3 | |||
| Plug type | LCDI(6-20P) | |||
| Control type | Electronic Control | |||
| indoor(cooling/heating) | °C | 17-32/0-27 | ||
| °F | 63-90/32-80 | |||
| outdoor(cooling/heating) | °C | 18-43/-5-24 | ||
| °F | 64-109/23-75 | |||
| Dimension(W*D*H) | mm | 1067x532x406 | ||
| in | 42.01x20.94x15.98 | |||
| Packing | (W*D*H) | mm | 1130x625x490 | |
| in | 44.49x24.61x19.29 | |||
| Net/Gross weight | kg | 50/54 | ||
| lb | 110.23/119.05 | |||
| Loading quantity 20’ /40’ /40'HQ | Pieces | 72/152/190 | ||

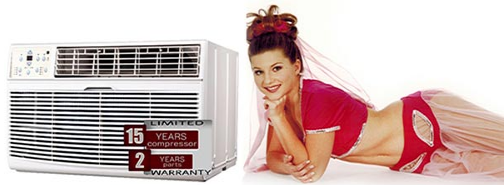

HEATING / COOLING
Most Popular Apartment Solid Sided Builder Unit
TTW BUILDER MODEL
8,000 BTU
115 VOLTS
15 YEAR WARRANTY ON COMPRESSOR
ONLY
$797
Longest Warranty in the United States on a TTW!
Don't let the price fool you, I'm high class!
| Customer model | GA23-08ERN1-DCI6 |
GA23-12ERN1-MCI5 |
GA23-14ERN1-MCI3 |
||
| Power supply | V-Ph-Hz | 115V_1Ph,FREQUENCY_60HZ | 208And230V_1Ph,FREQUENCY_60HZ | 208And230V_1Ph,FREQUENCY_60HZ | |
| Cooling (Standard conditions) | Capacity | Btu/h | 8000 | 12000/11700 | 14000/13600 |
| EER | W/W | 3.13 | Infinity | 0.30 | |
| CEER | Btu/h/W | 9.6 | 9.5 | 9.5 | |
| Input | W | 750 | 1180/1160 | 1430/1400 | |
| Current | A | 9.4 | 6.5/7.0 | 7.9/8.5 | |
| Standby power | W | 1.34 | 1.458 | 1.455 | |
| Heating(PTC) | Capacity | Btu/h | 4200 | 10600/8600 | 10600/8600 |
| Input(Heater) | W | 1220 | 3450/2821 | 3450/2821 | |
| Current | A | 11 | 15/13.5 | 15.0/14.0 | |
| Moisture Removal | L/h | 0.9 | 1.2 | 1.4 | |
| Rated Power Input | W | 1350 | 3450 | 3450 | |
| Rated Current | A | 11 | 15 | 15 | |
| Starting current | A | 33 | 45 | / | |
| Compressor | Model | KSN66E11VBZC1 | KSM100N11VEZ | KSM120N1UEZ | |
| Type | ROTARY | ROTARY | ROTARY | ||
| Brand | GMCC | GMCC | GMCC | ||
| Capacity | W | 2395 | 3590/3620 | 3640/3680 | |
| Input | W | 577 | 850/875±3% | 1240/1260±3% | |
| current | A | 5.10 | 4.18/3.85±3% | 6.00/5.55±3% | |
| Locked rotor Amp(LRA) | A | 36 | 28.5±10% | 34.5±10% | |
| Thermal protector | / | UP-A2H/HPA-325H | HPA-530H | ||
| Thermal protector position | INTERNAL | INTERNAL | INTERNAL | ||
| Capacitor | uF | 50 | 35 | 35 | |
| Refrigerant oil/oil charge | ml | VG68 190±10 | VG68 300±15 | VG68 300±15 | |
| Refrigerant type | Type | R32 | R32 | R32 | |
| 0.34kg | 0.49kg | 0.55kg | |||
| oz(1kg=35.274oz) | 11.99 | 17.28 | 19.40 | ||
| Design pressure(145psi=1MPa )(L/H) | psi | 300/520 | 300/520 | 300/520 | |
| Fan motor | Model | ZKFP-120-8-97L | ZKFP-120-8-97L | ZKFP-120-8-97L | |
| Input | W | 130.00 | 130.00 | 130.00 | |
| Current | A | 1.15 | 1.15 | 1.15 | |
| Capacitor | uF | / | / | / | |
| Speed(hi/mi/lo) | r/min | 1370/1210/1040 | 1550/1440/1340 | 1550/1440/1340 | |
| Insulation class | B | B | B | ||
| Waterproofing class | IP24 | IP24 | IP24 | ||
| Evaporator | a.Number of rows | 2 | 3 | 4 | |
| b.Tube pitch(a)x row pitch(b) | mm | 19.5x11.6 | 19.5x11.6 | 19.5x11.6 | |
| c.Fin spacing | mm | 1.2 | 1.3 | 1.3 | |
| d.Fin type (code) | Hydrophilic aluminum | Hydrophilic aluminum | Hydrophilic aluminum | ||
| e.Tube outside dia.and type | mm | Φ7,Inner groove tube | Φ7,Inner groove tube | Φ7,Inner groove tube | |
| f.Coil length x height x width | mm | 506x252x26.74 | 505x252x53.48 | 505x252x53.48 | |
| g.Number of circuits | 2 | 4 | 4 | ||
| Indoor side air flow(Hi/Mi/Lo) | m3/h | 440/386/327 | 465/428/392 | 463/428/396 | |
| 1 m3/h = 0.588 ft3/min | ft3/min | 258.82/227.06/192.35 | 273.53/251.76/230.59 | 272.35/251.76/232.94 | |
| Indoor side noise level (Hi/Mi/Lo) | dB(A) | 58.7/55.4/52 | 61.8/60/58 | 62.3/61.2/59.8 | |
| Condenser | a.Number of rows | 3 | 3 | 3 | |
| b.Tube pitch(a)x row pitch(b) | mm | 19.5x11.6 | 19.5x11.6 | 19.5x11.6 | |
| c.Fin spacing | mm | 1.2 | 1.2 | 1.2 | |
| d.Fin type (code) | Hydrophilic aluminum | Hydrophilic aluminum | Hydrophilic aluminum | ||
| e.Tube outside dia.and type | mm | Φ5,Inner groove tube | Φ5,Inner groove tube | Φ5,Inner groove tube | |
| f.Coil length x height x width | mm | 380x351x34.8 | 380x351x34.8 | 380x351x34.8 | |
| g.Number of circuits | 2 | 2 | 2 | ||
| Outdoor air flow (Hi/Med/Lo) m3/h | m3/h | 722/613/504 | 767/695/623 | 816/747/680 | |
| 1 m3/h = 0.588 ft3/min | ft3/min | 424.71/360.59/296.47 | 451.18/408.82/366.47 | 480.00/439.41/400.00 | |
| Outdoor side noise level(Hi) | dB(A) | 63.5/59.7/55.9 | 65.4/63.2/61.1 | 69.8/67.2/64.8 | |
| Plug type | LCDI(6-15P) | LCDI(6-20P) | LCDI(6-20P) | ||
| Power cord type | 14#x3 | 12#x3 | 12#x3 | ||
| Power Cord Length | mm | 1700 | 1700 | 1700 | |
| Power Cord Length | ft | 5.58 | 5.58 | 5.58 | |
| Control type | Remote Control | Remote Control | Remote Control | ||
| Operation temp | indoor(cooling/heating) | ℃ | 17～32// | 17～32// | 17～32// |
| ℉(=℃*1.8+32) | 62～90// | 62～90// | 62～90// | ||
| outdoor(cooling/heating) | ℃ | 18～43/-5～24 | 18～43/-5～24 | 18～43/-5～24 | |
| ℉(=℃*1.8+32) | 64～109/5～75 | 64～109/5～75 | 64～109/5～75 | ||
| Dimension(W*D*H)(Remark:TTW/OPP/MSII/HD(D*W*H)) | mm | 615x515x369 | 615x515x369 | 615x515x369 | |
| in | 24.21x20.28x14.53 | 24.21x20.28x14.53 | 24.21x20.28x14.53 | ||
| Packing (W*D*H) | mm | 710x675x430 | 710x675x430 | 710x675x430 | |
| in | 27.95x26.57x16.93 | 27.95x26.57x16.93 | 27.95x26.57x16.93 | ||
| Net/Gross weight | kg | 30.3/35 | 34/38.9 | 35.1/39.8 | |
| lb | 66.80/77.16 | 74.96/85.76 | 77.38/87.74 | ||
| Loading quantity 20’ /40’ /40'HQ | Pieces | 120/255/306 | 120/255/306 | 120/255/306 | |
| Window Opening | Width(Min/Max)(Inches) | in | 26.8/36 | 26.8/36 | 26.8/36 |
| Height(Min)(Inches) | in | 15.5 | 15.5 | 15.5 | |

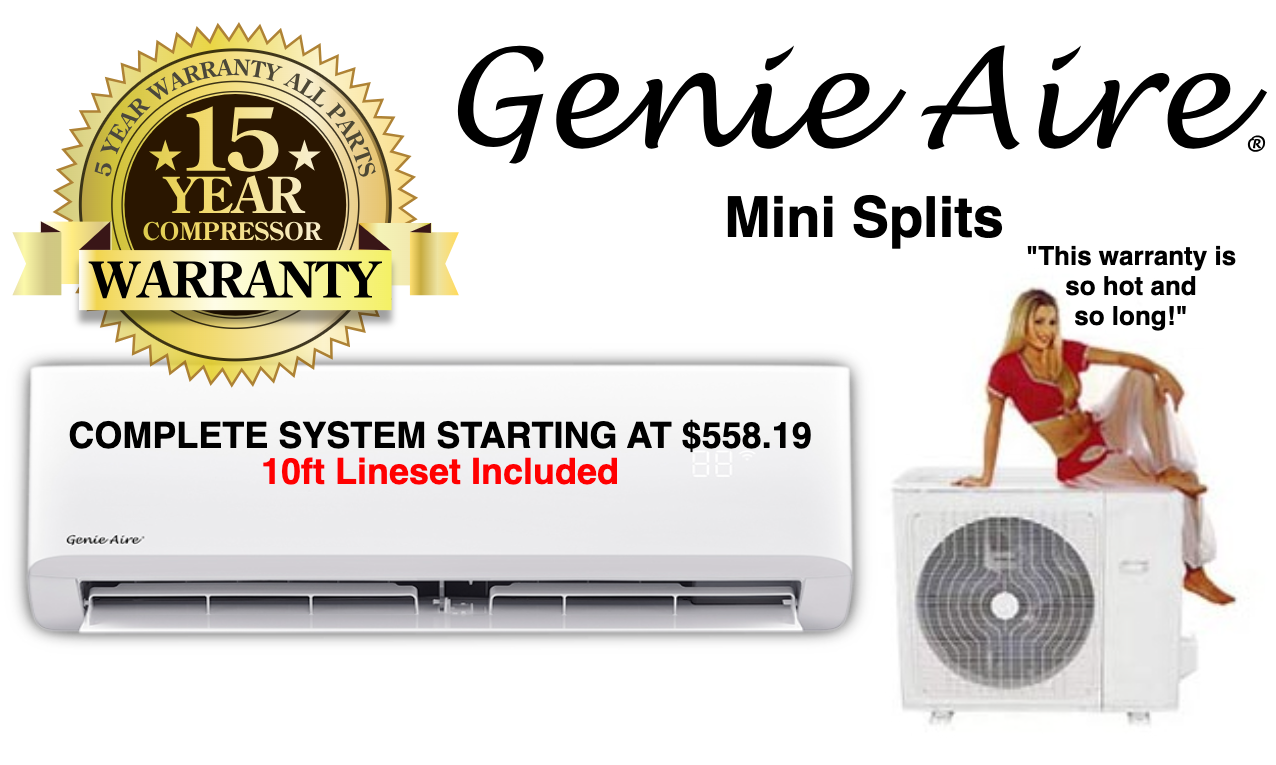

Complete System! Indoor and Outdoor Units!
Up to 21.5 SEER
GA-09HP115V9,000 BTU115 VoltsHEAT PUMP$998.00 GA-12HP115V12,000 BTU115 VoltsHEAT PUMP$930.00 GA-12HP230V12,000 BTU230 VoltsHEAT PUMP$930.00 GA-18HP230V18,000 BTU230 VoltsHEAT PUMP$1308.00 GA-24HP230V24,000 BTU230 VoltsHEAT PUMP$1782.00 GA-36HP230V36,000 BTU230 VoltsHEAT PUMP$2268.00Indoor unit model |
GA-09HP115V/I |
GA-12HP115V/I |
GA-12HP230V/I |
GA-18HP230V/I |
GA-24HP230V/I |
GA-36HP230V/I |
||
Outdoor unit model |
GA-09HP115V/O |
GA-12HP115V/O |
GA-12HP230V/O |
GA-18HP230V/O |
GA-24HP230V/O |
GA-36HP230V/O |
||
Power supply |
V-Ph-Hz |
115V,1Ph,60Hz |
115V,1Ph,60Hz |
208/230V,1Ph,60Hz |
208/230V,1Ph,60Hz |
208/230V,1Ph,60Hz |
208/230V,1Ph,60Hz |
|
Cooling (Standard conditions) |
Capacity (range) |
Btu/hr |
9000(2650~10300) |
12000(3800~12100) |
12000(3800~13350) |
18000(3900~20000) |
24000(6200~24600) |
36000(8300~37500) |
Input |
W |
720(245~950) |
1165(239~1890) |
1111(239~1528) |
1638(180~1480) |
2520(292~2900) |
3790(340~3048) |
|
Current |
A |
6.26(2.13~9.16) |
10.13(2.07~16.5) |
4.9(1.05~6.78) |
7.5(0.78~6.43) |
11.2(1.95~12.7) |
16.8(1.45~13.3) |
|
EER |
Btu/hr/W |
12.5 |
10.3 |
10.8 |
11 |
9.5 |
9.5 |
|
SEER |
Btu/hr/W |
21.5 |
20.0 |
20.5 |
19.5 |
18.5 |
18 |
|
Heating (Standard conditions) |
Capacity (range) |
Btu/hr |
10000(2700~10500) |
12000(2730~12500) |
12000(2730~13900) |
18800(6300~19400) |
24000(6800~26800) |
36000(10900~37360) |
Input |
W |
900(220~1200) |
1154(376~1390) |
1039(376~1390) |
1806(375~1770) |
2350(437~2900) |
3790(610~3720) |
|
Current |
A |
7.82(1.95~10.45) |
10.05(3.26~16) |
4.6(1.67~6.17) |
/(1.63~7.69) |
10.25(2.88~12.7) |
16.8(2.66~16.2) |
|
COP |
W/W |
3.26 |
3.05 |
3.38 |
3.05 |
2.99 |
2.78 |
|
HSPF |
Btu/hr/W |
10.3 |
10.8 |
10.7 |
10 |
10.2 |
12.0 |
|
Cooling at 5 F (-15℃) |
Rated capacity |
Btu/hr |
9000 |
12000 |
12000 |
20000 |
29000 |
42400 |
Cooling(B2) |
Rated capacity |
Btu/hr |
9900 |
13000 |
13000 |
20000 |
25600 |
37400 |
EER |
Btu/hr/W |
15.75 |
12.72 |
13.48 |
13.13 |
11.63 |
11.74 |
|
Heating at 17F(-8.33℃) |
Rated capacity |
Btu/hr |
9000 |
7600 |
8900 |
12400 |
17800 |
24700 |
COP |
W/W |
2.08 |
1.93 |
1.99 |
2.06 |
2.01 |
2.03 |
|
Heating at -4F(-20℃) |
Rated capacity |
Btu/hr |
5400 |
/ |
/ |
/ |
/ |
18900 |
COP |
W/W |
1.67 |
/ |
/ |
/ |
/ |
1.68 |
|
Heating(H32)17F(-8.33℃) |
Rated capacity |
Btu/hr |
6300 |
7800 |
7000 |
11400 |
14500 |
20000 |
COP |
W/W |
2.4 |
2.3 |
2.5 |
2.57 |
2.38 |
2.3 |
|
Heating(H42) 5F(-15℃) |
Rated capacity |
Btu/hr |
7000 |
6300 |
8000 |
11700 |
14800 |
22000 |
COP |
W/W |
2.16 |
1.78 |
1.79 |
2.06 |
1.83 |
2.01 |
|
capability ratio |
% |
70.00 |
52.50 |
66.67 |
62.23 |
67.50 |
64.44 |
|
Moisture removal |
L/h |
0.891 |
1.46 |
1.21 |
2.49 |
2.7 |
4.48 |
|
MINIMUM CIRCUIT AMPACITY(Indoor) |
A |
3 |
3 |
3 |
3 |
3.0 |
3.0 |
|
MAX.FUSE(Indoor) |
A |
15 |
15 |
15 |
15 |
15 |
15 |
|
MINIMUM CIRCUIT AMPACITY(Outdoor) |
A |
20 |
18.5 |
15 |
15 |
19 |
28 |
|
MAX.FUSE(Outdoor) |
A |
30 |
25 |
15 |
20 |
30 |
35 |
|
Compressor |
Model |
KSK103D33UEZ3 |
KSN98D64UFZ3 |
KSN98D64UFZ3 |
KSN140D21UFZ |
KTM240D43UKT |
KTF250D22UMT |
|
Type |
ROTARY |
ROTARY |
ROTARY |
ROTARY |
Twin-ROTARY |
ROTARY |
||
Brand |
GMCC |
GMCC |
GMCC |
GMCC |
GMCC |
GMCC |
||
Capacity |
W |
2035/3255 |
1930/3100 ±3% |
1930/3100 ±3% |
4385 |
7600 |
8095 |
|
Input |
W |
325/826 |
292/765 ±3% |
292/765 ±3% |
1140 |
2045 |
2200 |
|
Rated current(RLA) |
A |
14 |
12.98 |
7.5 |
10 |
14.25 |
18 |
|
Thermal protector position |
NA |
NA |
NA |
/ |
NA |
NA |
||
Capacitor |
uF |
/ |
/ |
/ |
/ |
/ |
/ |
|
Refrigerant oil/oil charge |
ml |
ESTER OIL VG74 310 |
ESTER OIL VG74 300±10 |
ESTER OIL VG74 300±10 |
VG74 440 |
ESTER OIL VG74 620 |
VG74/670 |
|
Indoor fan motor |
Model |
ZKFP-20-8-113 |
ZKFP-20-8-113 |
ZKFP-13-8-4 |
ZKFP-30-8-3-10 |
ZKFP-58-8-1-5 |
ZKFP-58-8-1-5 |
|
Input |
W |
35 |
35 |
/ |
36 |
58 |
58 |
|
RLA |
A |
0.15 |
0.41 |
0.63 |
0.4 |
0.45 |
0.5 |
|
Speed(Hi/Mi/Lo) |
r/min |
1050/810/690 |
850/750/450 |
1250/1070/800 |
1200/1000/700 |
1200/1080/600 |
1200/960/600 |
|
Indoor air flow (Turbo/Hi/Mi/Lo) |
m3/h |
530/406/289/233 |
580/510/410/300 |
590/495/335/265 |
0/780/560/460 |
1237/929/684/562 |
1350/1110/760/560 |
|
CFM |
311.76/238.82/170.00/137.06 |
341.18/300.00/241.18/176.47 |
347.06/291.18/197.06/155.88 |
//458.82/329.41/270.59 |
727.65/546.47/402.35/330.59 |
794.12/652.94/447.06/329.41 |
||
Indoor noise level (Hi/Mi/Lo) |
dB(A) |
37.5/28/20 |
41/35/26.5 |
41/35/24 |
45/38/30.0 |
45/39.5/36 |
54/45/40 |
|
Indoor unit |
Dimension(W*D*H) |
mm |
729x200x292 |
802x200x295 |
802x200x295 |
971x228x321 |
1082x234x337 |
1259x283x362 |
Dimension(W*D*H) |
inch |
28.70x7.87x11.50 |
31.57x7.87x11.61 |
31.57x7.87x11.61 |
38.23x8.98x12.64 |
42.60x9.21x13.27 |
49.57x11.14x14.25 |
|
Packing (W*D*H) |
mm |
790x270x375 |
875x285x380 |
875x285x380 |
1045x305x405 |
1155x415x315 |
1340x450x385 |
|
Packing (W*D*H) |
inch |
31.10x10.63x14.76 |
34.45x11.22x14.96 |
34.45x11.22x14.96 |
41.14x12.01x15.94 |
45.47x16.34x12.40 |
52.76x17.72x15.16 |
|
Net/Gross weight |
kg |
8.0/10.3 |
8.4/10.9 |
8.5/10.9 |
11.1/14.4 |
13.6/17.3 |
19.4/25.2 |
|
Net/Gross weight |
lb |
17.64/22.71 |
18.52/24.03 |
18.74/24.03 |
24.47/31.75 |
29.98/38.14 |
42.77/55.56 |
|
Outdoor fan motor |
Model |
ZKFN-34-10-1-3 |
ZKFN-34-10-1-3 |
ZKFN-34-10-1-3 |
ZKFN-34-10-1-3 |
ZKFN-80-8-3 |
ZKFN-120-8-2 |
|
Input |
W |
/ |
/ |
/ |
/ |
/ |
150 |
|
RLA |
A |
0.32 |
0.73 |
0.65 |
0.7 |
0.76 |
0.5 |
|
LRA |
A |
/ |
/ |
/ |
/ |
/ |
/ |
|
Winding Resistance |
Ω |
/ |
/ |
/ |
/ |
/ |
/ |
|
Capacitor |
uF |
/ |
/ |
/ |
0 |
/ |
/ |
|
Speed |
r/min |
800/600 |
780/700/600 |
780/700/600 |
950/800/650/450 |
810/720 |
1150/1050/900/850 |
|
Outdoor air flow |
m3/h |
2200 |
2100 |
2100 |
2100 |
3000 |
3800 |
|
Outdoor air flow |
CFM |
1294.12 |
1235.29 |
1235.29 |
1235.29 |
1764.71 |
2235.29 |
|
Outdoor noise level |
dB(A) |
55 |
53.5 |
53.5 |
57 |
60 |
65 |
|
Throttle type |
/ |
Capillary |
Capillary |
Capillary |
Capillary |
Throttle valve |
EXV+Throttle valve |
|
Outdoor unit |
Dimension(W*D*H) |
mm |
765x303x555 |
765x303x555 |
765x303x555 |
805x330x554 |
890x342x673 |
946x410x810 |
Dimension(W*D*H) |
inch |
30.12x11.93x21.85 |
30.12x11.93x21.85 |
30.12x11.93x21.85 |
31.69x12.99x21.81 |
35.04x13.46x26.50 |
37.24x16.14x31.89 |
|
Packing (W*D*H) |
mm |
887x337x610 |
887x337x610 |
887x337x610 |
915x370x615 |
995x398x740 |
1090x500x885 |
|
Packing (W*D*H) |
inch |
34.92x13.27x24.02 |
34.92x13.27x24.02 |
34.92x13.27x24.02 |
36.02x14.57x24.21 |
39.17x15.67x29.13 |
42.91x19.69x34.84 |
|
Net/Gross weight |
kg |
26.2/28.8 |
28.2/30.7 |
26.9/29.4 |
33.5/36.2 |
44.4/47.4 |
68.1/72.1 |
|
Net/Gross weight |
lb |
57.76/63.49 |
62.17/67.68 |
59.30/64.82 |
73.85/79.81 |
97.88/104.50 |
150.13/158.95 |
|
Refrigerant type |
R410A |
R410A |
R410A |
R410A |
R410A |
R410A |
||
Refrigerant charge |
kg |
0.72 |
0.81 |
0.81 |
1.35 |
1.78 |
3.40 |
|
oz |
25.4 |
29 |
29 |
48 |
63 |
120 |
||
Additional charge per metre |
g/m |
15 |
15 |
15 |
15 |
30 |
30 |
|
Additional charge for each ft |
oz/ft |
0.16 |
0.16 |
0.16 |
0.16 |
0.32 |
0.32 |
|
Design pressure |
PSIG |
550/340 |
550/340 |
550/340 |
550/340 |
550/340 |
550/340 |
|
Refrigerant piping |
Liquid side/ Gas side |
mm(inch) |
6.35mm(1/4in)/9.52mm(3/8in) |
6.35mm(1/4in)/12.7mm(1/2in) |
6.35mm(1/4in)/12.7mm(1/2in) |
6.35mm(1/4in)/12.7mm(1/2in) |
9.52mm(3/8in)/15.9mm(5/8in) |
9.52mm(3/8in)/15.9mm(5/8in) |
Max. refrigerant pipe length |
m |
25 |
25 |
25 |
30 |
50 |
65 |
|
Max. refrigerant pipe length |
ft |
82.02 |
82.02 |
82.02 |
98.42 |
164.04 |
213.25 |
|
Max. difference in level |
m |
10 |
10 |
10 |
20 |
25 |
30 |
|
Max. difference in level |
ft |
32.81 |
32.81 |
32.81 |
65.62 |
82.02 |
98.42 |
|
Connection wiring |
16#x4// |
16#x4// |
16#x4// |
16#x4// |
16#x4// |
16#x4// |
||
Thermostat type |
Remote Control |
Remote Control |
Remote Control |
Remote Control |
Remote Control |
Remote Control |
||
Room temperature |
Indoor(cooling) |
℃ |
16～32 |
16～32 |
16～32 |
16～32 |
16～32 |
16～32 |
℉ |
60～90 |
60～90 |
60～90 |
60～90 |
60～90 |
60～90 |
||
Indoor(heating) |
℃ |
0～30 |
0～30 |
0～30 |
0～30 |
0～30 |
0～30 |
|
℉ |
32～86 |
32～86 |
32～86 |
32～86 |
32～86 |
32～86 |
||
Outdoor(cooling) |
℃ |
-15～50 |
-15～50 |
-15～50 |
-15～50 |
-15～50 |
-15～50 |
|
℉ |
5～122 |
5～122 |
5～122 |
5～122 |
5～122 |
5～122 |
||
Outdoor(heating) |
℃ |
-15～24 |
-15～24 |
-15～24 |
-15～24 |
-15～24 |
-15～24 |
|
℉ |
5～75 |
5～75 |
5～75 |
5～75 |
5～75 |
5～75 |
||
Qty’per 20’ /40’ /40'HQ |
111/228/260 |
98/208/250 |
98/208/250 |
86/174/204 |
64/134/156 |
36/76/88 |
||
10,000 BTUs
115 Volts
13
Window Kit Available
| Cooling Capacity (Btu/hr) | 10100 |
| Type | Window |
| Heating Mode | Yes |
| Product Class | 11. With reverse cycle, with louvered sides, and less than 20,000 Btu/h |
| Variable Speed Compressor | Yes |
| Low Noise | No |
| Refrigerant Type | R-410A |
| Refrigerant with GWP | R-410A (GWP:2088) |
| Combined Energy Efficiency Ratio (CEER) | 10.8 |
| Percent Less Energy Use than US Federal Standard | 10 |
| Annual Energy Use (kWh/yr) | 701 |
1 & 5 YR WARRANTY • HEATING & COOLING
OS-09HP115V2NG9,000 BTU115 VoltsHEAT PUMP$830.00
OS-09HP115V2TG9,000 BTU115 VoltsHEAT PUMP$830.00
OS-09HP220V2TG9,000 BTU220 VoltsHEAT PUMP$830.00
OS-09HP230V2NG9,000 BTU230 VoltsHEAT PUMP$730.00
OS-12HP230V2NG12,000 BTU230 VoltsHEAT PUMP$950.00
OS-12TRP230V12,000 BTU230 VoltsHEAT PUMP$1132.00
OS-18HP220V2TG18,000 BTU230 VoltsHEAT PUMP$1330.00
OS-18HP230V2NG18,000 BTU230 VoltsHEAT PUMP$1330.00
OS-18TRP230V18,000 BTU230 VoltsHEAT PUMP$1358.00
| Model | OS-09HP115V2TG | |
| System Type | Heat Pump | |
| Power Supply | 115V / 60Hz | |
| Rated Current Cooling | Amps | 8.9 |
| Rated Current Heating | Amps | 7.9 |
| System Performance | ||
| Cooling Capacity (Min-Max) | Btu/h | 9,000 |
| Heating Capacity (Min-Max) | Btu/h | 9,000 |
| SEER/EER | 15 / 9.0 | |
| HSPF/COP | 8.2 / 3.2 | |
| Indoor Unit | ||
| Air Flow | CFM | 480/420/320 |
| Sound Pressure Level – T/H/M/L | dB (A) | 39/35/29 |
| Unit Dimension (WxHxD) | inches | 26.8 x 10.1 x 7.0 |
| Package Dimension (WxHxD) | inches | 29.3 x 13.0 x 10.1 |
| Net / Gross Weight | lb | 15 / 18 |
| Outdoor Unit | ||
| Compressor Type | DC Inverter-driven rotary | |
| Sound Pressure Level | dB (A) | 56 |
| Unit Dimension (WxHxD) | inches | 26.0 x 21.3 x 10.4 |
| Package Dimension (WxHxD) | inches | 31.3 x 24.4 x 14.0 |
| Net / Gross Weight | lb | 64 / 71 |
| Refrigerant / Charge | oz. | R410A / 31.8 |
| Line Set Size (Liquid – Suction) | inches | 1/4" – 3/8" |
| Pre-Charge | Feet | 25 |
| Max. Line Run | Feet | 82 |
| Max. Elevation | Feet | 33 |
| MCA | Amps | 15 |
| MOCP | Amps | 25 |
| Wire Size / # Wires | AWG16 / 4 | |
| Model | OS-12HP115V2TG | |
| System Type | Heat Pump | |
| Power Supply | 115V / 60Hz | |
| Rated Current Cooling | Amps | 11.9 |
| Rated Current Heating | Amps | 11.7 |
| System Performance | ||
| Cooling Capacity (Min-Max) | Btu/h | 12,000 |
| Heating Capacity (Min-Max) | Btu/h | 12,000 |
| SEER/EER | 15 / 8.7 | |
| HSPF/COP | 8.2 / 3.2 | |
| Indoor Unit | ||
| Air Flow | CFM | 580/500/400 |
| Sound Pressure Level – T/H/M/L | dB (A) | 39/35/29 |
| Unit Dimension (WxHxD) | inches | 30.3 x 10.1 x 7.4 |
| Package Dimension (WxHxD) | inches | 32.9 x 13.0 x 10.4 |
| Net / Gross Weight | lb | 17 / 21 |
| Outdoor Unit | ||
| Compressor Type | DC Inverter-driven rotary | |
| Sound Pressure Level | dB (A) | 55 |
| Unit Dimension (WxHxD) | inches | 26.0 x 21.3 x 10.4 |
| Package Dimension (WxHxD) | inches | 31.3 x 24.4 x 14.0 |
| Net / Gross Weight | lb | 64 / 71 |
| Refrigerant / Charge | oz. | R410A / 33.6 |
| Line Set Size (Liquid – Suction) | inches | 1/4" – 1/2" |
| Pre-Charge | Feet | 25 |
| Max. Line Run | Feet | 82 |
| Max. Elevation | Feet | 33 |
| MCA | Amps | 20 |
| MOCP | Amps | 30 |
| Wire Size / # Wires | AWG16 / 4 | |
| Model | OS-09HP220V2TG | |
| System Type | Heat Pump | |
| Power Supply | 208-230V / 60Hz | |
| Rated Current Cooling | Amps | 3.9 |
| Rated Current Heating | Amps | 4.0 |
| System Performance | ||
| Cooling Capacity (Min-Max) | Btu/h | 9,000 |
| Heating Capacity (Min-Max) | Btu/h | 9,000 |
| SEER/EER | 15 / 10.0 | |
| HSPF/COP | 8.2 / 2.9 | |
| Indoor Unit | ||
| Air Flow | CFM | 530/430/390 |
| Sound Pressure Level – T/H/M/L | dB (A) | 40/33/28 |
| Unit Dimension (WxHxD) | inches | 26.8 x 10.1 x 7.0 |
| Package Dimension (WxHxD) | inches | 29.3 x 13.0 x 10.1 |
| Net / Gross Weight | lb | 14 / 17 |
| Outdoor Unit | ||
| Compressor Type | DC Inverter-driven rotary | |
| Sound Pressure Level | dB (A) | 56 |
| Unit Dimension (WxHxD) | inches | 27.6 x 21.3 x 9.5 |
| Package Dimension (WxHxD) | inches | 32.1 x 22.8 x 12.8 |
| Net / Gross Weight | lb | 58 / 63 |
| Refrigerant / Charge | oz. | R410A / 24.0 |
| Line Set Size (Liquid – Suction) | inches | 1/4" – 3/8" |
| Pre-Charge | Feet | 25 |
| Max. Line Run | Feet | 50 |
| Max. Elevation | Feet | 33 |
| MCA | Amps | 10 |
| MOCP | Amps | 15 |
| Wire Size / # Wires | AWG16 / 4 | |
| Model | OS-12HP220V2TG | |
| System Type | Heat Pump | |
| Power Supply | 208-230V / 60Hz | |
| Rated Current Cooling | Amps | 5.9 |
| Rated Current Heating | Amps | 5.5 |
| System Performance | ||
| Cooling Capacity (Min-Max) | Btu/h | 12,000 |
| Heating Capacity (Min-Max) | Btu/h | 12,000 |
| SEER/EER | 15 / 9.0 | |
| HSPF/COP | 8.2 / 3.0 | |
| Indoor Unit | ||
| Air Flow | CFM | 600/530/400 |
| Sound Pressure Level – T/H/M/L | dB (A) | 39/35/31 |
| Unit Dimension (WxHxD) | inches | 30.3 x 10.1 x 7.4 |
| Package Dimension (WxHxD) | inches | 32.9 x 13.0 x 10.4 |
| Net / Gross Weight | lb | 17 / 21 |
| Outdoor Unit | ||
| Compressor Type | DC Inverter-driven rotary | |
| Sound Pressure Level | dB (A) | 57 |
| Unit Dimension (WxHxD) | inches | 30.7 x 21.3 x 9.8 |
| Package Dimension (WxHxD) | inches | 35.8 x 23.0 x 13.2 |
| Net / Gross Weight | lb | 66 / 71 |
| Refrigerant / Charge | oz. | R410A / 32.1 |
| Line Set Size (Liquid – Suction) | inches | 1/4" – 3/8" |
| Pre-Charge | Feet | 25 |
| Max. Line Run | Feet | 82 |
| Max. Elevation | Feet | 33 |
| MCA | Amps | 10 |
| MOCP | Amps | 15 |
| Wire Size / # Wires | AWG16 / 4 | |
| Model | OS-18HP220V2TG | |
| System Type | Heat Pump | |
| Power Supply | 208-230V / 60Hz | |
| Rated Current Cooling | Amps | 8.7 |
| Rated Current Heating | Amps | 8.0 |
| System Performance | ||
| Cooling Capacity (Min-Max) | Btu/h | 18,000 |
| Heating Capacity (Min-Max) | Btu/h | 18,000 |
| SEER/EER | 15 / 9.0 | |
| HSPF/COP | 8.2 / 3.0 | |
| Indoor Unit | ||
| Air Flow | CFM | 750/660/480 |
| Sound Pressure Level – T/H/M/L | dB (A) | 42/39/31 |
| Unit Dimension (WxHxD) | inches | 35.6 x 1 0.8 x 7.8 |
| Package Dimension (WxHxD) | inches | 38.2 x 13.6 x 10.6 |
| Net / Gross Weight | lb | 19 / 25 |
| Outdoor Unit | ||
| Compressor Type | DC Inverter-driven rotary | |
| Sound Pressure Level | dB (A) | 59 |
| Unit Dimension (WxHxD) | inches | 29.9 x 23.2 x 11.2 |
| Package Dimension (WxHxD) | inches | 34.9 x 25.4 x 14.0 |
| Net / Gross Weight | lb | 83 / 88 |
| Refrigerant / Charge | oz. | R410A / 42.3 |
| Line Set Size (Liquid – Suction) | inches | 1/4" – 1/2" |
| Pre-Charge | Feet | 25 |
| Max. Line Run | Feet | 98 |
| Max. Elevation | Feet | 66 |
| MCA | Amps | 14 |
| MOCP | Amps | 20 |
| Wire Size / # Wires | AWG16 / 4 | |
| Model | OS-24HP220V2TG | |
| System Type | Heat Pump | |
| Power Supply | 208-230V / 60Hz | |
| Rated Current Cooling | Amps | 10.6 |
| Rated Current Heating | Amps | 9.7 |
| System Performance | ||
| Cooling Capacity (Min-Max) | Btu/h | 22,000 |
| Heating Capacity (Min-Max) | Btu/h | 22,000 |
| SEER/EER | 15 / 9.0 | |
| HSPF/COP | 8.2 / 3.0 | |
| Indoor Unit | ||
| Air Flow | CFM | 1250/1150/950 |
| Sound Pressure Level – T/H/M/L | dB (A) | 49/43/39 |
| Unit Dimension (WxHxD) | inches | 40.6 x 12.4 x 8.6 |
| Package Dimension (WxHxD) | inches | 43.9 x 15.6 x 11.8 |
| Net / Gross Weight | lb | 27 / 33 |
| Outdoor Unit | ||
| Compressor Type | DC Inverter-driven twin-rotary | |
| Sound Pressure Level | dB (A) | 60 |
| Unit Dimension (WxHxD) | inches | 33.3 x 27.6 x 12.6 |
| Package Dimension (WxHxD) | inches | 38.0 x 29.7 x 15.6 |
| Net / Gross Weight | lb | 104 / 111 |
| Refrigerant / Charge | oz. | R410A / 56.4 |
| Line Set Size (Liquid – Suction) | inches | 3/8" – 5/8" |
| Pre-Charge | Feet | 25 |
| Max. Line Run | Feet | 98 |
| Max. Elevation | Feet | 66 |
| MCA | Amps | 16 |
| MOCP | Amps | 25 |
| Wire Size / # Wires | AWG16 / 4 | |
OUTDOOR CONDENSER UNITS
CH48MSPH230VO48,000 BTU230 VoltsHEAT PUMP$3775.66
INDOOR UNITS
CH-24MSPH-230V24,000 BTU230 VoltsHEAT PUMP$850.00
TERMS
CONTACT
DISCLAIMER
CONTACT@GENIEAC.COM
